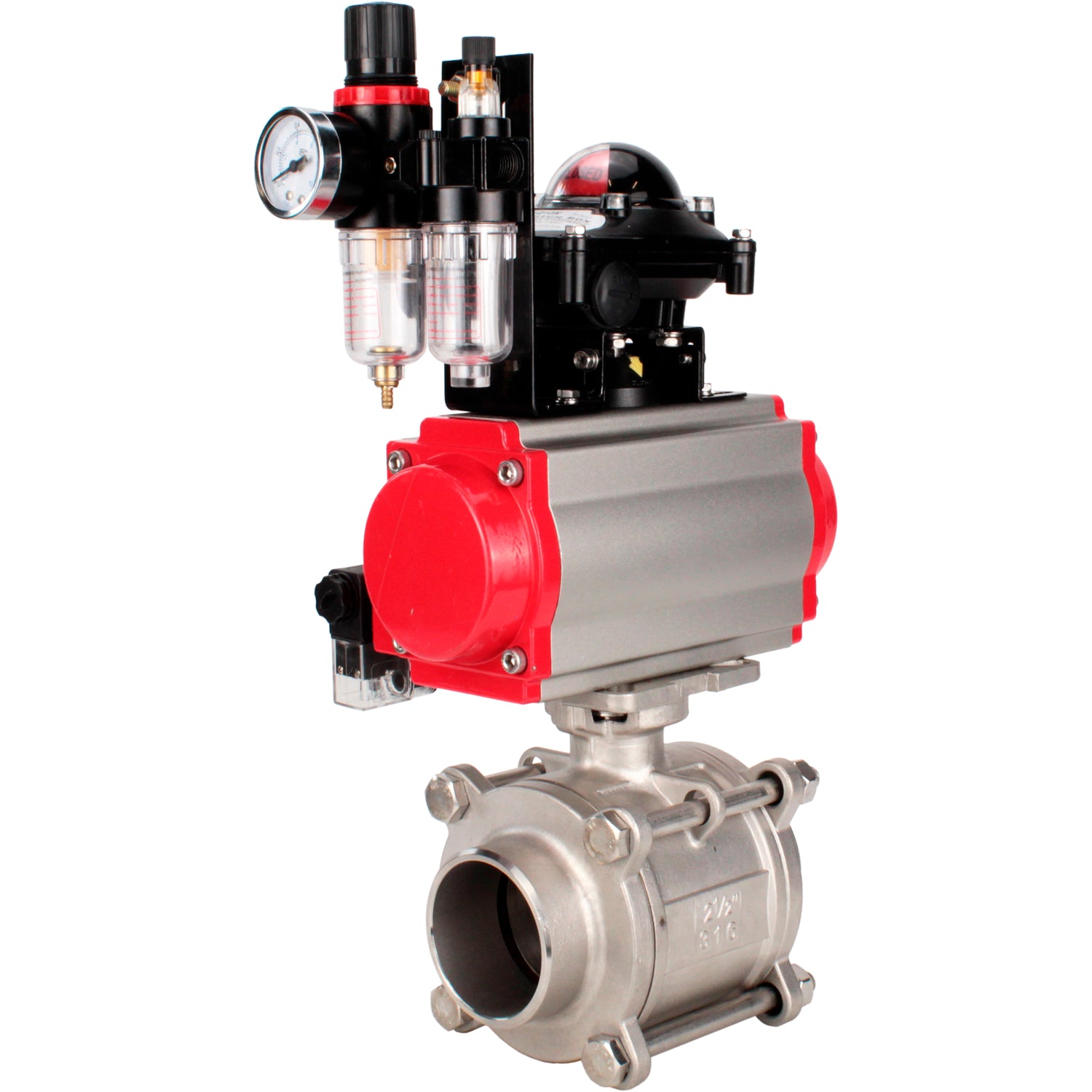

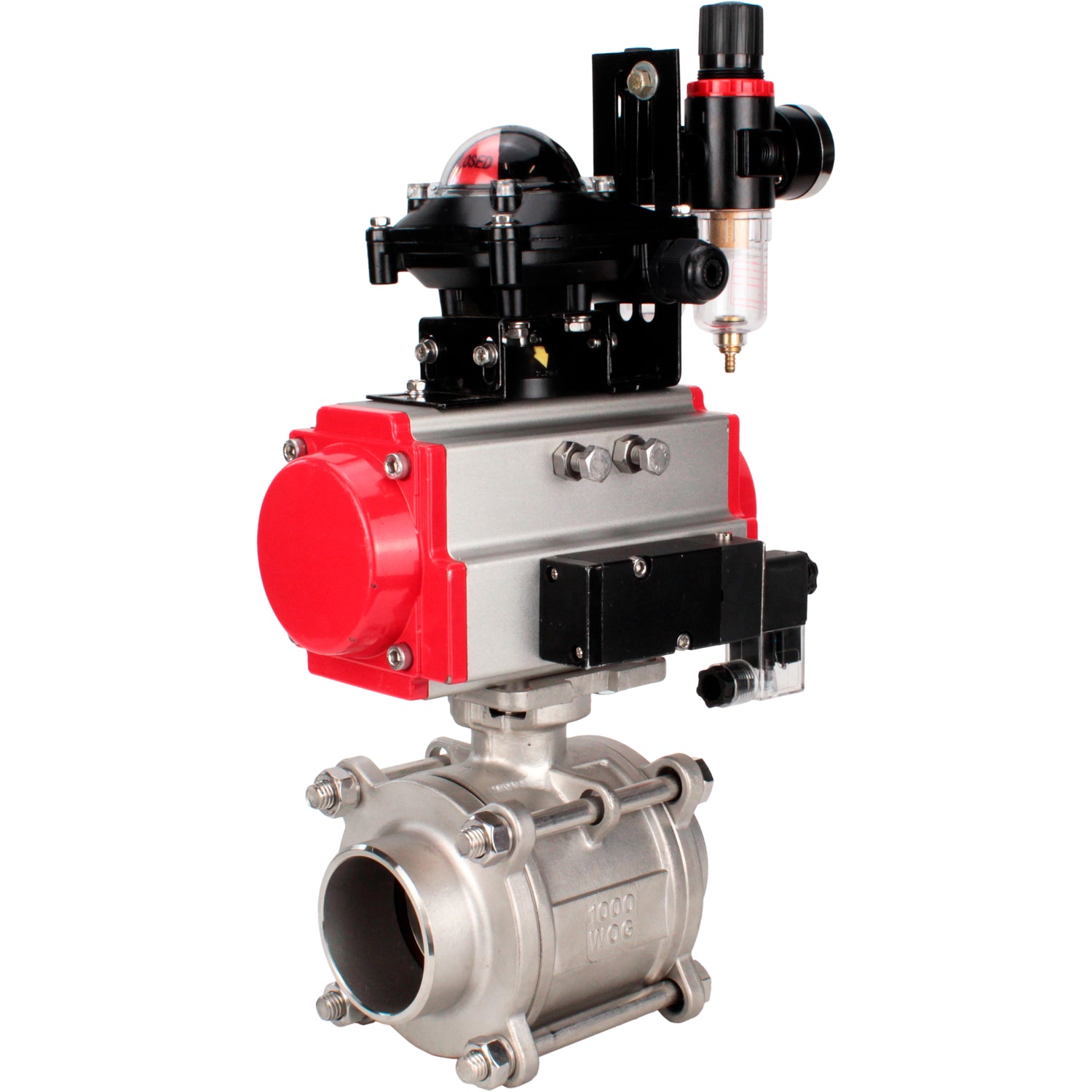

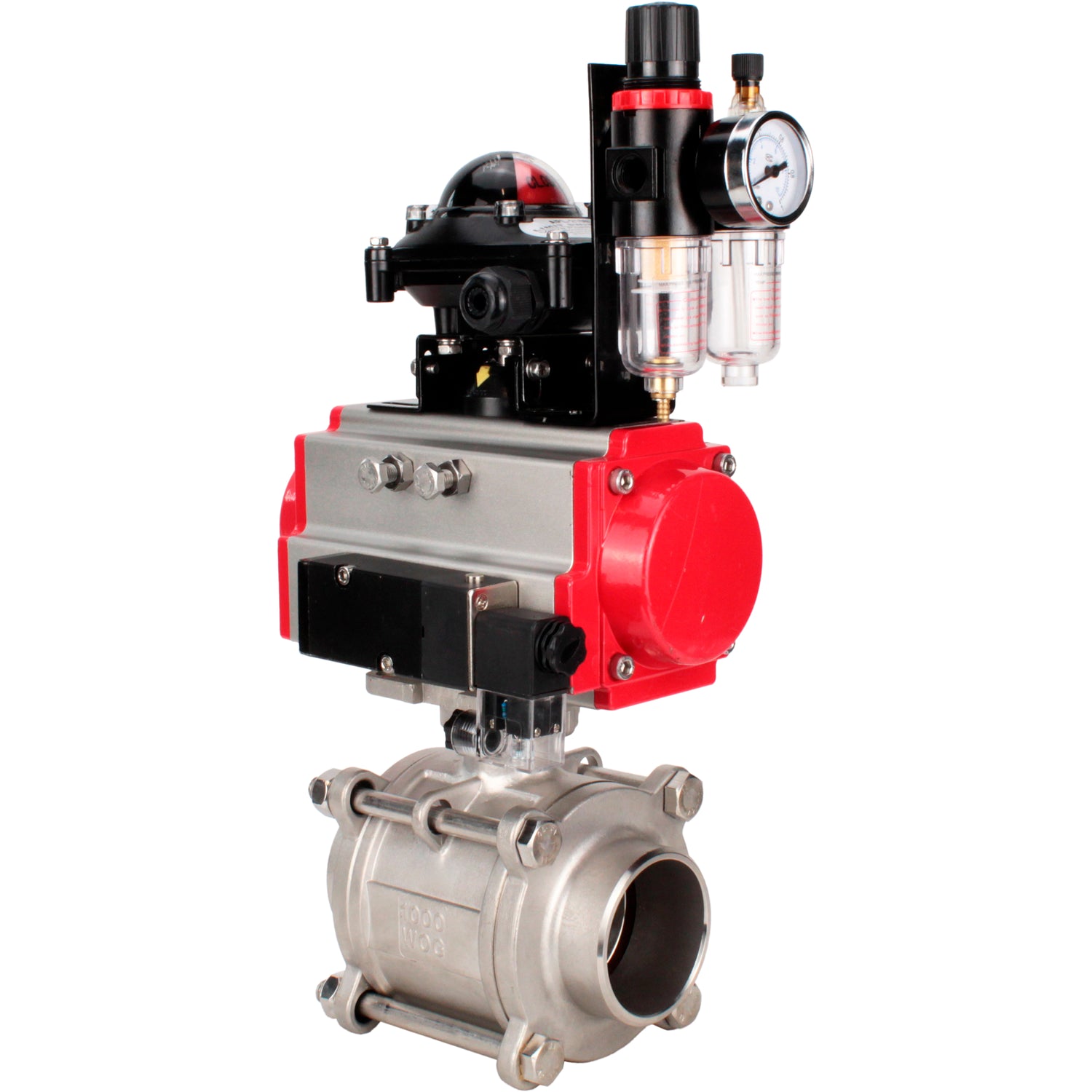

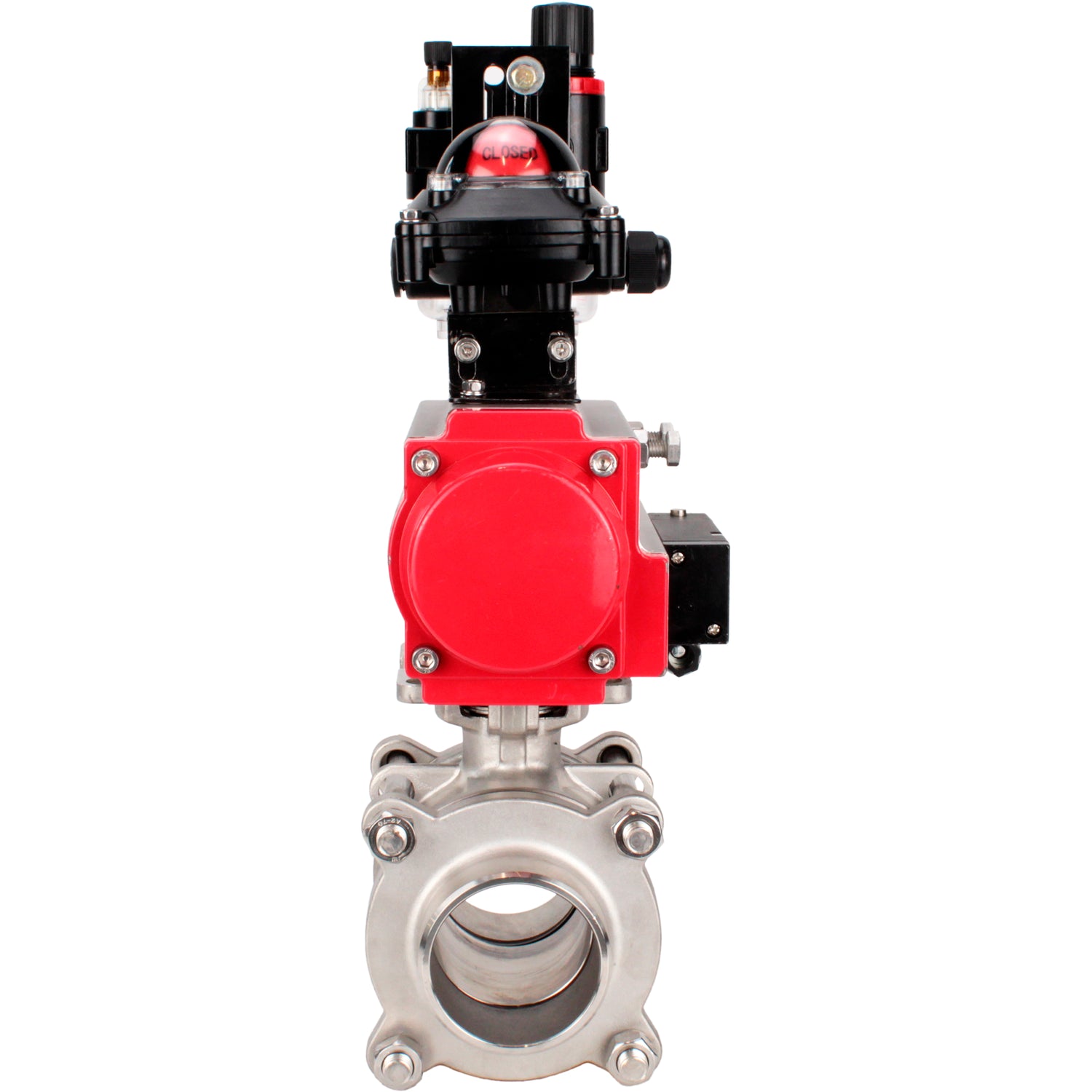

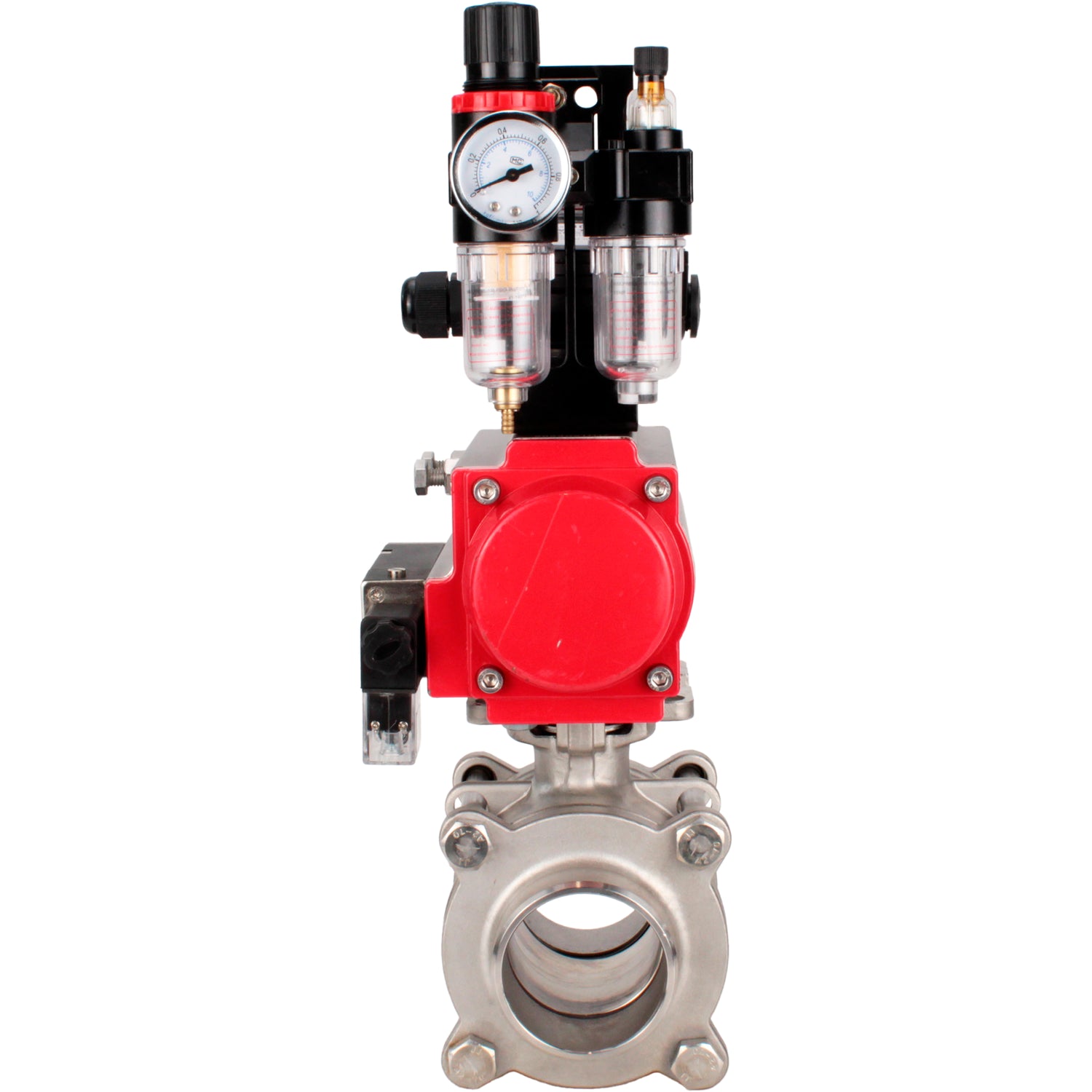

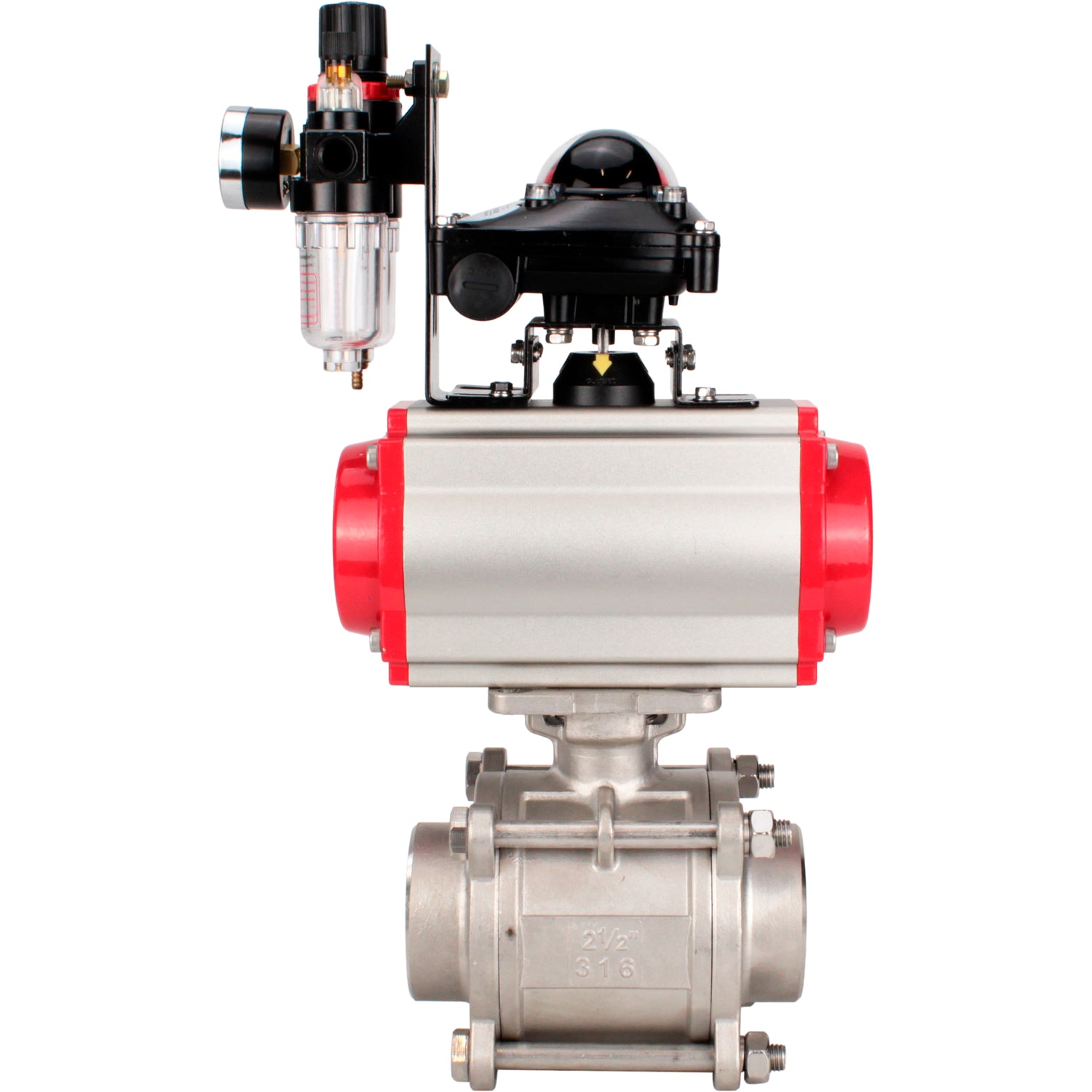

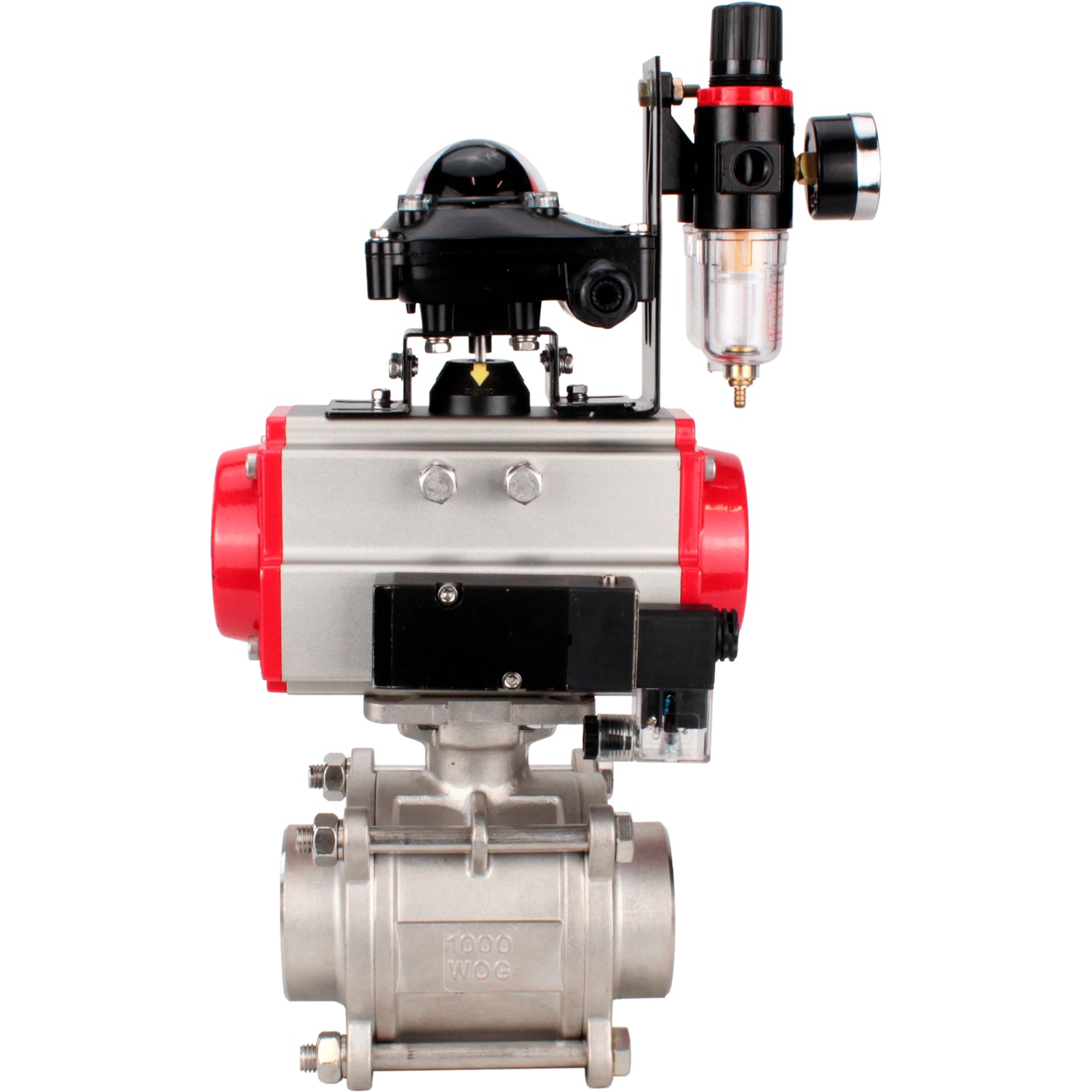

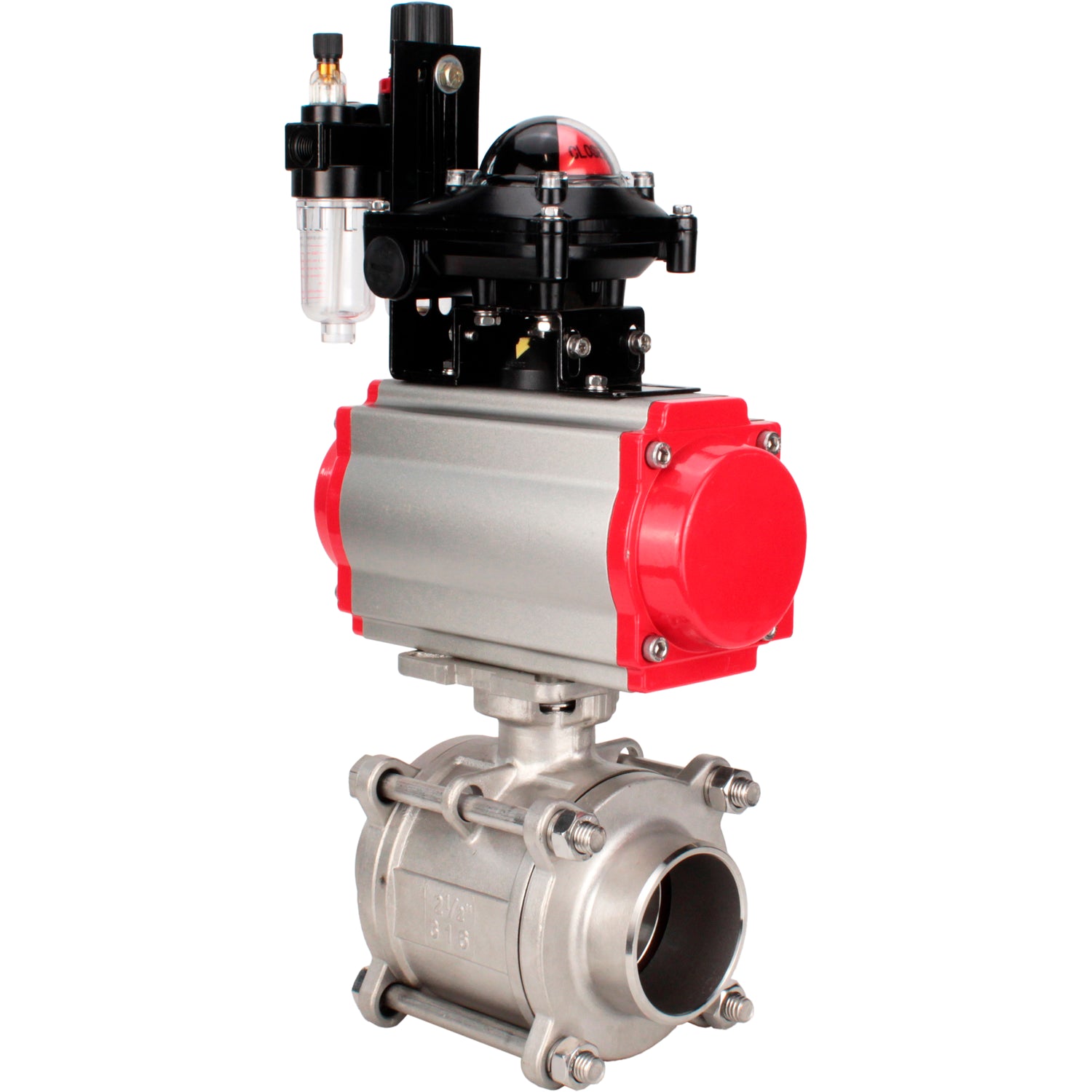

Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H WDVF DN15-32 63 bar full bore, body - 316 stainless steel, seal - PTFE, for welding, with PA-DA pneumatic actuator, pneumatic distributor 4M310-08 NAMUR 220V, LSU APL-210N, ATU AFC2000
Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H WDVF DN15-32 63 bar full bore, body - 316 stainless steel, seal - PTFE, for welding, with PA-DA pneumatic actuator, pneumatic distributor 4M310-08 NAMUR 220V, LSU APL-210N, ATU AFC2000 - DN15 / 63 bar ist auf Lager und wird versandt, sobald es wieder verfügbar ist
Verfügbarkeit für Abholungen konnte nicht geladen werden
Lieferung und Versand
Lieferung und Versand
Die Lieferkosten werden während des Bestellvorgangs festgelegt und variieren je nach mehreren Faktoren, einschließlich Produkttyp, Lieferzeit, Dienstleister und Zielland.
Beschreibung
Beschreibung
The Elephant BV3232P(3pc)-FP-W-ISO-H WDVF ball valve is used as a shut-off valve in heat supply systems, water supply systems, steam, fuel systems, and pneumatic systems with compressed air and neutral gases. The BV3232P(3pc)-FP-W-ISO-H WDVF series valves can be installed in systems transporting liquid and gaseous media (water, steam, petroleum products, and neutral media) that are non-corrosive to the valve materials.
The Elephant PA-DA pneumatic actuator is designed to automate the control of industrial shut-off valves, such as globe valves and ball valves. Elephant pneumatic actuators are designed for both indoor and outdoor use. All internal and external components have an anti-corrosion coating.
Technical parameters of the ball valve Elephant BV3232P(3pc)-FP-W-ISO-H WDVF DN15-32 63 bar
| Name | Value |
| Nominal pressure, bar | 63 |
| Working fluid temperature, °C | -29 to 180 |
| Valve device type | Two-way |
| Application | Water supply, heat supply, steam supply |
| Working fluid | Water, steam, petroleum products, neutral media |
| Pipeline connection | Welded ends |
| Water-drawable | No |
| Flow area type | Full bore |
| Tightness class | A |
| Control type | With pneumatic actuator |
| Connection | Welded ends |
| Control | Double-acting pneumatic actuator |
| Presence of limit switches | No |
| Presence of pneumatic valve | Yes |
| Presence of electropneumatic positioner | No |
| Average service life, years | 10 |
| Country of manufacture | China |
Dimensions and sizes of the ball valve Elephant BV3232P(3pc)-FP-W-ISO-H WDVF DN15-32 63 bar
| DN | D, mm | L, mm | F, mm | L1, mm |
| 15 | 21,3 | 76 | 92 | 147 |
| 20 | 26,9 | 81 | 92 | 147 |
| 25 | 33,7 | 90 | 92 | 147 |
| 32 | 42,4 | 110 | 92 | 147 |
Sketch of a ball valve Elephant BV3232P(3pc)-FP-W-ISO-H WDVF DN15-32 63 bar
Table of parts and materials for a ball valve Elephant BV3232P(3pc)-FP-W-ISO-H WDVF DN15-32 63 bar
| № | Part Name | Material |
| 1 | Body | Stainless steel AISI 316 |
| 2 | Bonnet | Stainless steel AISI 316 |
| 3 | Ball | Stainless steel AISI 316 |
| 4 | Seal | PTFE |
| 5 | Coupling Gasket | PTFE |
| 6 | Thrust Washer | PTFE |
| 7 | Packaging | PTFE |
| 8 | Bushing | Stainless steel AISI 304 |
| 9 | Stem | Stainless steel AISI 304 |
| 10 | Gasket | Stainless steel AISI 304 |
| 11 | Washer | Stainless steel AISI 304 |
| 12 | Washer | Stainless steel AISI 304 |
| 13 | Nut | Stainless steel AISI 304 |
| 14 | Bolt | Stainless steel AISI 304 |
| 15 | Handle | Stainless steel SS 201 |
| 16 | Handle Cover | PVC |
| 17 | Nut | Stainless steel AISI 304 |
Sketch of the parts and materials of the ball valve Elephant BV3232P(3pc)-FP-W-ISO-H WDVF DN15-32 63 bar
Technical parameters of the PA-DA pneumatic drive
| Name | Value |
| Model | PA-DA |
| Design | double action |
| Control pressure, bar | 2 ÷ 8 |
| Manual override available | no |
Table of parts and materials for the Elephant PA-DA pneumatic actuator
| № | Part Name | Material |
| 1 | Indicator Screw | ABS plastic |
| 2 | Position Indicator | ABS plastic |
| 3 | Spring Clamp | 304 stainless steel |
| 4 | Metal Washer | 304 stainless steel |
| 5 | Thrust Washer | Engineering plastic |
| 6 | Housing | Extruded aluminum alloy with hard anodizing |
| 7 | Thrust Washer | Engineering plastic |
| 8 | Stopper | Alloy steel |
| 9 | Upper Shaft Seal Ring | NBR |
| 10 | Upper Shaft Anti-Friction Ring | Engineering plastic |
| 11 | Shaft | Nickel-plated alloy steel |
| 12 | Lower Shaft Anti-Friction Ring | Engineering plastic |
| 13 | Lower Shaft Seal Ring | NBR |
| 14 | Plug | NBR |
| 15 | Adjusting Screw Seal Ring | NBR |
| 16 | Adjusting Screw Washer | 304 stainless steel |
| 17 | Adjusting Screw Lock Nut | 304 stainless steel |
| 18 | Adjusting Screw | 304 stainless steel |
| 19 | Piston | Die-cast aluminum alloy |
| 20 | Piston Guide Pad | Engineering plastic |
| 21 | Piston Anti-Friction Ring | Engineering plastic |
| 22 | Piston Seal Ring | NBR |
| 23 | Spring Kit | Spring steel |
| 24 | Cover Seal Ring | NBR |
| 25 | End Cover | Cast aluminum with polyester coating |
| 26 | Cover Screw | 304 stainless steel |
| 27 | Locking Screw | 304 stainless steel |
| 28 | Adapter | Carbon steel |
Sketch of parts and materials for the Elephant PA-DA pneumatic drive
Technical characteristics of the pneumatic distributor 4M310-08 NAMUR
| Design | Spool-type |
| Test pressure (body strength test. Not for operation!), bar | 10 |
| Working pressure (recommended range for normal operation), bar | 1.5 ÷ 8 |
| Valve type | 5/2 five-port, two-position |
| Working medium | purified air (40 µm filter fineness) |
| Operating temperature, °C | 0 to +60 |
| Actuation frequency | 5 cycles per second |
| Manual override | yes |
| Protection rating/insulation class | IP65/F |
| Connection to pneumatic actuator | NAMUR-compliant mounting surface (VDI/VDE3845) |
| Body material | anodized aluminum |
| Effective cross-sectional area, mm2 | 25 (Cv = 1.4) |
| Exhaust port dimensions (vent to atmosphere) | 2 - PT1/4” |
| Air inlet port size (to pneumatic valve) | G1/4” |
| Air outlet port size (to pneumatic actuator) | 2 x Ø19.2 mm |
| Response time, sec | 0.05 |
| Supply voltage, V | 220AC/24DC |
| Coil power | 220VAC – 5.5 VA/24VDC – 4.8 W |
| Weight, kg | 0.35 |
| Average service life, cycles | 10,000,000 |
Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR
| A | C | D | E | F | G | H | I | K | L | J | N | M |
| mm | ||||||||||||
| 40 | 24 | 28 | 32 | 40 | 21,5 | 69 | 45 | 17,5 | 135 | 29,3 | 40 | 27 |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR
| № | Part Name | Material |
| 1 | Connector | Engineering plastic |
| 2 | Nut | POM + carbon steel |
| 3 | Coil | Copper |
| 4 | Control Elements | — |
| 5 | Plate | Carbon steel |
| 6 | Piston | POM |
| 7 | Control Valve Seat | Engineering plastic |
| 8 | Valve Body | Aluminum alloy |
| 9 | Spool | Aluminum alloy |
| 10 | O-Ring Seal | HNBR |
| 11 | Rear Cover | Engineering plastic |
| 12 | Filter | Synthetic material |
| 13 | Piston | POM |
| 14 | Spring | Stainless steel |
| 15 | Manual Override | Engineering plastic |
| 16 | Rear Seat | Aluminum alloy |
| 17 | Spring Seat | Aluminum alloy |
| 18 | Type C Towing Shackle | 65Mn |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Technical parameters of the Elephant APL-210N limit switch unit
| Name | Meaning |
| Limit switch block model | APL-210N |
| Service life, years | 10 |
Main parameters of the Elephant AFC2000 air preparation unit
| Operating pressure, bar | 8 |
| Maximum pressure, bar | 10 |
| Adjustable pressure range, bar | 0.5 ÷ 9 |
| Burst pressure, bar | 15 |
| Air connection | 1/4" |
| Operating temperature, °C | -5 to +60 |
| Filtered particle size, µm | 40 |
| Oil viscosity | ISO VG 32 |
| Weight, kg | 0.395 |
| Kit contents | Filter-dryer, pressure regulator, lubricator, bracket |
Sketch of BPV Elephant AFC2000
Spezifikation
Spezifikation
-
Herkunftsland
-
Körpermaterial
-
Maximal zulässige Temperatur
-
Verbindungstyp
-
Steuerungstyp
-
BetriebsumgebungWater, Steam, Petroleum products, Neutral environments
-
AnwendungenWater Supply, Heat supply, Steam supply
-
Nenndruck
-
Typ der Dichtung
-
Sperrmaterial
-
Explosionsgeschützt
-
Endschalter
-
Typ des pneumatischen Antriebs
-
Drehwinkel
