Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-100 16/40 bar full-b – Valve Elephant
Elephant  |  SKU: D160-63129

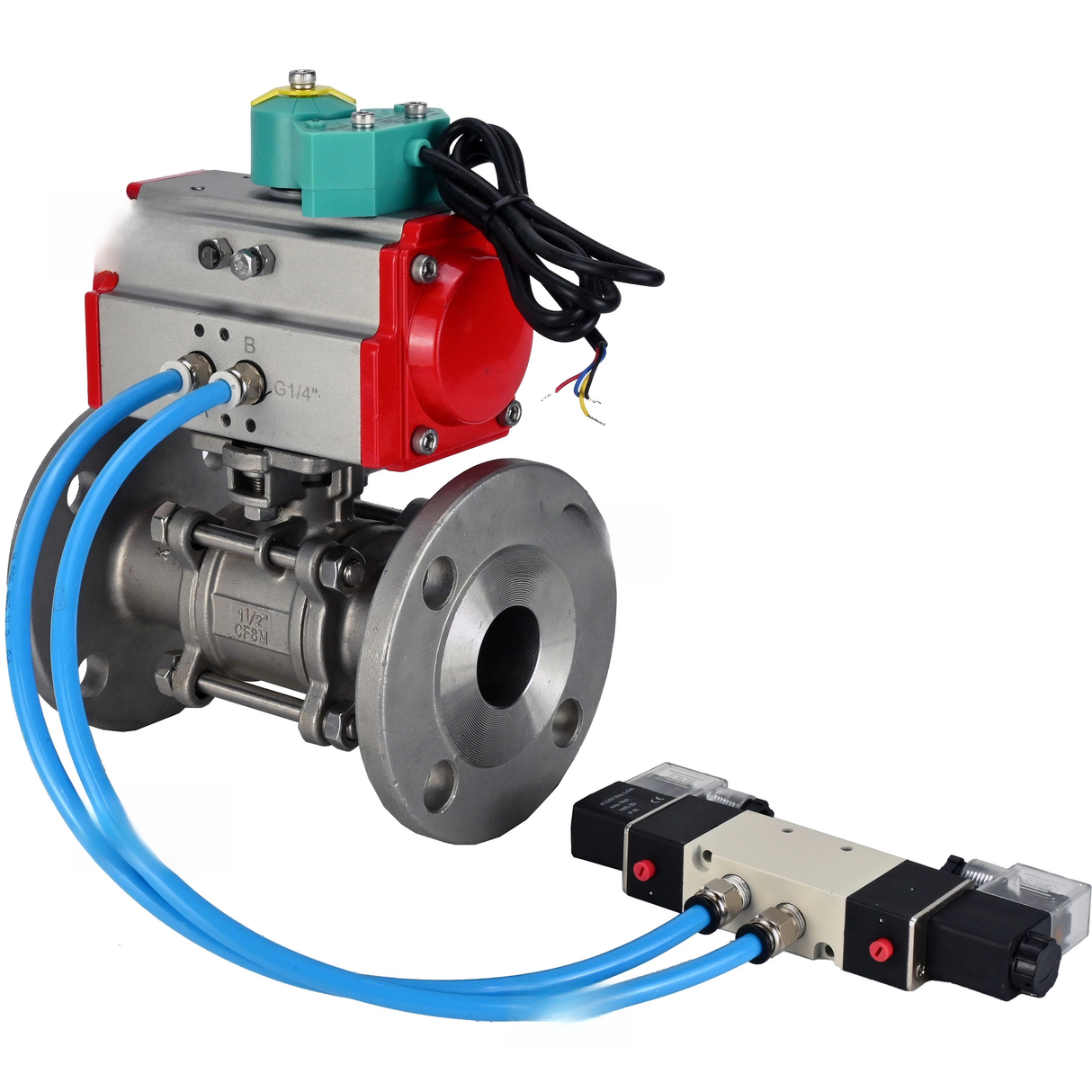

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-100 16/40 bar full-bore three-piece, flanged, 304 stainless steel, seal - PTFE, with PA-SA pneumatic actuator, pneumatic distributor 4V320-10 220V and ALS200D magnetic switch

€265,24
inkl. MwSt. Versand wird beim Checkout berechnet.

Lieferung und Versand

Die Lieferkosten werden während des Bestellvorgangs festgelegt und variieren je nach mehreren Faktoren, einschließlich Produkttyp, Lieferzeit, Dienstleister und Zielland.

Wenn Sie Fragen zu unseren Produkten, Lieferoptionen oder anderen Themen haben, zögern Sie nicht, uns zu kontaktieren.

Beschreibung

Ball valves are used as shut-off valves in heating, water supply, steam, fuel, and compressed air and neutral gas systems. Valves of this series can be installed in systems that transport liquid and gaseous media (water, oil, steam, air, alcohols, glycol, etc.) that are non-aggressive to the valve materials.
Principle of operation: The working flow is shut off by a locking element, which is a ball with a through cylindrical hole. The ball is rotated around its axis using a handle mounted on the body. To completely shut off the flow, it is sufficient to turn it 90 degrees.
PA-DA-x double-acting pneumatic actuators use two ports to supply the control medium and create movement in both directions, both for opening and closing the valve. One port is used to move the piston in one direction, and the other is used to move it in the opposite direction.
The Elephant ALS200D magnetic switch is designed to convert the end positions of pneumatic actuators or shut-off valves into electrical signals. The magnetic switch operates based on the activation of two independent, fully sealed magnetic sensors located inside a U-shaped housing.





Technical specifications of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-100 16/40 bar

Name Value
Nominal pressure, bar DN15-50 – 40
DN65-80 – 25
DN100 – 16
Working medium temperature, ⁰C from -20 to +180
Working medium water, steam, petroleum products, and other liquid or gaseous media neutral to valve materials
Connection to pipeline flanged
Type of passage section full bore
Ball valve tightness class A according
Service life, years 10
Average service life, opening/closing cycles 60000





Technical characteristics of Elephant double-acting rotary pneumatic actuators PA-DA-XXX

Characteristics Value
Pneumatic drive type double-acting
Nominal pressure 12 bar
Working pressure 2...8 bar
Maximum particle diameter less than 30 µm2
Working medium filtered compressed air or non-aggressive gases, oils
Adjustment range ± 5° for rotation at 0° and 90°





Technical characteristics of pneumatic valves Elephant 4V320-10 220V

Characteristics Value
Pneumatic valve model 4V320-10 220V
Supply voltage 220V
Design spool-type
Nominal pressure 12 bar
Working pressure 1.5...8 bar
Ambient temperature +5 to +50 ⁰C
Working medium filtered compressed air
Response frequency 5 cycles/sec
Protection rating IP65
Mounting through through-holes in the housing
Housing material anodized aluminum
Response time 0.05 sec





Technical specifications of the Elephant ALS200D magnetic switch

Characteristics Value
Housing Material PP-GF30 plastic
Housing Protection Rating IP67
Compatible Devices pneumatic actuators, any actuators with 90° shaft rotation
Shaft Angle Indicator 0-90°
Contact Type NO
Sensor Interaction Type magnetic
Sensor Interaction Distance 1÷6 mm
On/Off Switching Frequency 0÷4.8 kHz
Visual Indication two LEDs
Rated Voltage 5÷240 V AC/DC
Rated Current 0÷300 mA
Rated Power 10 W
Ambient Temperature -40 to +85 °C
Cable Terminal 4 wires (2 wires/open, 2 wires/close)
Weight 0.14 kg
Warranty 12 months
Service Life 10 years





Overall and installation dimensions of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-100 16/40 bar

DN L, mm d, mm D, mm L1, mm H, mm
15 130 15 95 147 92
20 150 20 105 147 92
25 160 25 115 168 108
32 180 32 140 204 128.7
40 200 40 150 204 128.7
50 230 50 165 204 128.7
65 290 65 185 268 153
80 310 80 200 301 185
100 350 100 234 390 202
100 22х22, F10 350 100 220 390 202

Sketch of the dimensions of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-100 16/40 bar





Overall and installation dimensions of Elephant double-acting rotary pneumatic actuators PA-DA-XXX

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm I, mm J, mm M, mm N, mm Z, mm d, mm K L
PA-DA(SA)-052 30 41.5 65.5 72 92 65 30 80 36 50 11х11 14 147 40 M5x8 M6x10
PA-DA(SA)-065 36 47 81 88 108 72 30 80 50 70 14х14 18 168 40 M6x10 M8x13
PA-DA(SA)-083 46 57 98.5 108.7 128.7 92 30 80 50 70 17х17 21 204 40 M6x10 M8x13
PA-DA(SA)-105 57.5 64 122.5 133 153 109.5 30 80 70 102 22х22 26 268 40 M8x13 M10x16
PA-DA(SA)-130 67.5 74.5 145.5 155 185 127.5 30 130 70 102 22х22 26 301 55 M8x13 M10x16
PA-DA(SA)-140 75 77 161 172 202 137.5 30 130 102 125 27х27 31 390 55 M10x16 M12x20
PA-DA(SA)-160 87 87 184 197 227 159 30 130 102 125 27х27 31 458 55 M10x16 M12x20
PA-DA(SA)-210 113 113 235.5 255 285 210 30 130 - 140 36х36 40 532 80 - M16x25
PA-DA(SA)-270 147 147 299 326 356 273 30 130 - 165 46х46 50 718 80 - M20x25

Поворотные пневмоприводы DN.ru двойного действия PA-DA-XXX

Dimensional sketch of the Elephant double-acting rotary pneumatic actuators PA-DA-XXX





Overall and installation dimensions of the Elephant ALS200D magnetic switch

A, mm B, mm C, mm E, mm d, mm
75 30 51 40 5.5
Dimensional sketch of the Elephant ALS200D magnetic switch





Materials for ball valve parts Elephant BV3131P(3pc)-FP-F-ISO-H DN15-100 16/40 bar


№ Part Name Material Quantity
1 Body CF8 stainless steel / AISI 304 1
2 Ball AISI 304 stainless steel 1
3 Bolt SS 201 stainless steel 4~6
4 Nut SS 201 stainless steel 6~12
5 Seal PTFE 1
6 Stem AISI 304 stainless steel 1
7 Seal SS 201 stainless steel 1
8 Cover CF8 stainless steel / AISI 304 2
9 Seat Rings PTFE 2
10 Thrust Washer PTFE 1
11 Nut SS 201 stainless steel 1

Sketch of materials for ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-100 16/40 bar





Design of Elephant double-acting rotary pneumatic actuators PA-DA-XXX

№ Part Name Material
1 Indicator Screw ABS plastic
2 Position Indicator ABS plastic
3 Spring Clamp 304 stainless steel
4 Metal Washer 304 stainless steel
5 Thrust Washer Engineering plastic
6 Housing Extruded aluminum alloy with hard anodizing
7 Thrust Washer Engineering plastic
8 Stopper Alloy steel
9 Upper Shaft Seal Ring NBR
10 Upper Shaft Anti-Friction Ring Engineering plastic
11 Shaft Nickel-plated alloy steel
12 Lower Shaft Anti-Friction Ring Engineering plastic
13 Lower Shaft Seal Ring NBR
14 Plug NBR
15 Adjusting Screw Seal Ring NBR
16 Adjusting Screw Washer 304 stainless steel
17 Adjusting Screw Lock Nut 304 stainless steel
18 Adjusting Screw 304 stainless steel
19 Piston Die-cast aluminum alloy
20 Piston Guide Pad Engineering plastic
21 Piston Anti-Friction Ring Engineering plastic
22 Piston Seal Ring NBR
23 Spring Kit Spring steel
24 Cover Seal Ring NBR
25 End Cover Cast aluminum with polyester coating
26 Cover Screw 304 stainless steel
27 Locking Screw 304 stainless steel
28 Adapter Carbon steel

Sketch of Elephant double-acting rotary pneumatic actuators PA-DA-XXX

Spezifikation
  • Herkunftsland
    China
  • Körpermaterial
    Stainless steel
  • Maximal zulässige Temperatur
    180 °C
  • Verbindungstyp
    Flanged
  • Steuerungstyp
    Pneumatic actuator
  • Betriebsumgebung
    Water, Steam, Petroleum products, Liquid media, Neutral media, Gaseous media
  • Anwendungen
    Water Supply, Heat supply, Pneumatic systems
  • Typ der Dichtung
    PTFE / Fluoroplastic / Teflon
  • Sperrmaterial
    Stainless steel
  • Explosionsgeschützt
    No
  • Endschalter
    No
  • Typ des pneumatischen Antriebs
    with return springs
  • Drehwinkel
    90°

Bewertungen (0)

Dokumentation

Zahlung & Sicherheit

Zahlungsmethoden

    Ihre Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben keinen Zugriff auf Ihre Kreditkarteninformationen.ShareRewrite

    Verfügbare Varianten

    SKUVerbindungsgrößeDruckPreis VerfügbarkeitAnzahl In den Warenkorb
    D160-63129DN1540 bar €265,24 Ausverkauft
    D160-63130DN2040 bar €278,38 Ausverkauft
    D160-63131DN2540 bar €304,42 Ausverkauft
    D160-63132DN3240 bar €417,17 Ausverkauft
    D160-63133DN4040 bar €430,15 Ausverkauft
    D160-63134DN5040 bar €472,42 Ausverkauft
    D160-63135DN6525 bar €611,86 Ausverkauft
    D160-63136DN8025 bar €798,59 Ausverkauft
    D160-63127DN10016 bar €1.092,86 Ausverkauft
    D160-63128DN100 22х22, F1016 bar €1.186,91 Ausverkauft
