Water Butterfly valves Elephant WBV3131S-2W-T-H, body material - stain – Valve Elephant
Elephant  |  SKU: D050-67149

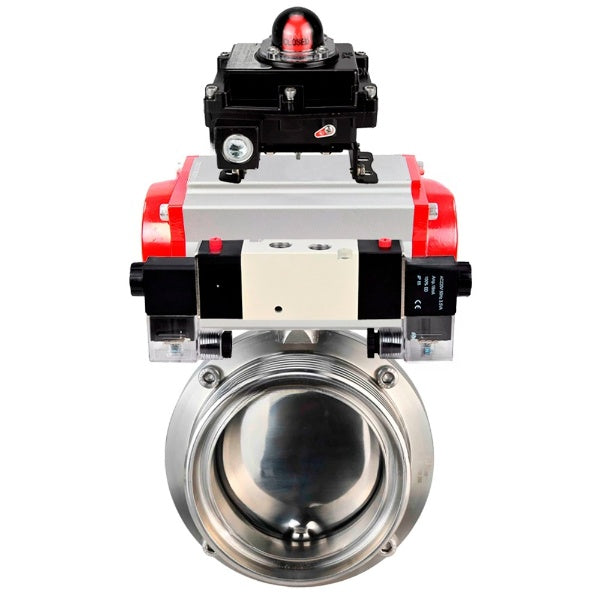

Water Butterfly valves Elephant WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-DA, pneumatic distributor 4V320-08 220V, LSU APL-410N EX

€359,72
inkl. MwSt. Versand wird beim Checkout berechnet.

Lieferung und Versand

Die Lieferkosten werden während des Bestellvorgangs festgelegt und variieren je nach mehreren Faktoren, einschließlich Produkttyp, Lieferzeit, Dienstleister und Zielland.

Wenn Sie Fragen zu unseren Produkten, Lieferoptionen oder anderen Themen haben, zögern Sie nicht, uns zu kontaktieren.

Beschreibung

The butterfly valve is designed to be used as a shut-off or regulating valve for flow control in heat supply systems, water supply, in technological processes of the food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.
Elephant pneumatic rotary actuators double-acting PA-DA and pneumatic rotary actuators with return spring PA-SA are designed to automate the process of controlling industrial valves at a maximum torque of up to 2128 Nm.
The pneumatic distributor is used to change the direction, start, stop compressed air flows in a pneumatic system depending on the external control action.
The limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off element of pipeline valves. The sealed box usually contains two mechanical switches rated for up to 250 V, which monitor the position of the actuator rod and signal in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color hemisphere of the visual indicator. If the connected pipeline valve is closed, only the red part of the hemisphere with the inscription CLOSED is visible; if open, only the yellow part with the inscription OPEN. This visual indicator is clearly visible from afar, which simplifies the inspection of the equipment, and the color difference between the open and closed positions reduces the likelihood of erroneous perception of information. Thanks to the use of the LSU, it becomes possible to transmit information about the position of the pipeline valve (open / closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics when faults are detected.





Technical characteristics of the Elephant WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-DA, pneumatic distributor 4V320-08 220V, LSUAPL-410N EX

Characteristic Meaning
Shutter type rotary disc
Diameter 15-100 mm
Nominal pressure 10 bar
Working environment temperature from -50 to +180°C
Application Food industry
Connection type coupling (threaded)
Control type pneumatic drive
Sealing class A
Guarantee 12 months





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators





Pneumatic distributors Elephant 4V320-08 220V



Technical characteristics of pneumatic distributors Elephant 4V320-08 220V:

Characteristic Meaning
Model of pneumatic distributor 4V320-08 220V
Supply voltage 220V
Type of pneumatic distributor spool valve
Nominal pressure 12 bar
Working pressure 1.5...8 bar
Ambient temperature from -5 to +50 ⁰C
Working environment purified air (filtration fineness 40 microns)
Response frequency 5 cycles/s
Degree of protection IP65
Control two-way electromagnetic
Body material aluminum alloy and technopolymer
Response time 0.05 sec
Diameter of working channels 1/4"



Limit Switch Blocks Elephant APL-410N EX

Technical characteristics of limit switch units Elephant APL-410N EX:

Characteristic Meaning
Limit switch block model APL-410N EX
Protection All-weather IP65, explosion-proof Exd IIB T6
Ambient temperature from -25°C to +80°C
Cable entry thread 2 x NPT1/2”
Terminal block 8 cells 0.05-2.5mm2
Rated current 10 A
Nominal voltage 250V
Switches/sensors two mechanical switches / two proximity sensors
Full rotation angle 90°
Service life 10 years





Sketch of dimensions of butterfly valves Elephant WBV3131S-2W-CH DN15-100 PN10 food grade stainless steel 304, Silicon



Overall and installation dimensions of the Elephant WBV3131S-2W-CH clamp-type butterfly valves DN15-100 PN10 food grade stainless steel 304, Silicon:

Diameter D, mm G, mm D1, mm A, mm H, mm J, mm K, mm
DN15 15 Rd34x1/8 78 66 86 126 8x8
DN20 19 Rd44x1/6 78 66 86 126 8x8
DN25 25 Rd52x1/6 78 66 86 126 8x8
DN32 31 Rd58x1/6 86 70 90 126 8x8
DN40 37 Rd65x1/6 90 74 92 126 8x8
DN50 49 Rd78x1/6 106 76 104 133 10x10
DN65 66 Rd95x1/6 124 80 113 144 10x10
DN80 81 Rd110x1/4 139 84 123.5 160 10x10
DN100 100 Rd130x1/4 159 104 133.5 160 10x10





Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators



Sketch of dimensions of pneumatic distributors Elephant 4V320-08 220V



Overall and installation dimensions of pneumatic distributors Elephant 4V320-08 220V:

A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
H, mm 82.4
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 83.4
P, mm 22
S, mm 20
T, mm 6.5
U, mm 2.4





Sketch of the dimensions of the limit switch blocks Elephant APL-410N EX



Overall and installation dimensions of limit switch units Elephant APL-410N EX:

A, mm 177
B, mm 174
C, mm 178
D, mm 101
E, mm 76
F, mm 57
G, mm 55
H, mm 23
I, mm 27
J, mm 3
K, mm 4
d1, mm 5
d2, mm 9.5





Materials of parts of butterfly valves Elephant WBV3131E-2W-T-H, body material - food grade stainless steel 304, disk material - Stainless steel AISI 304

№ Part Name Material
1 Body Stainless steel AISI 304
2 Rotary assembly Stainless steel AISI 304
3 Disc Stainless steel AISI 304
4 Seat seal EPDM or Silicon
5 Nut Steel A2~70
6 Bolt Steel A2~70
7 Plug ABS plastic
8 Handle Polyamide plastic

 Sketch of materials of butterfly valves Elephant WBV3131E-2W-T-H, body material - food grade stainless steel 304, disk material - Stainless steel AISI 304






Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Sketch of limit switch blocks Elephant APL-410N EX explosion-proof



Materials of parts of explosion-proof limit switch units Elephant APL-410N EX:

No. Name Material Quantity
1 Visual indicator ABS plastic / polycarbonate 1
2 Visual indicator cover polycarbonate 1
3 Label - 1
4 LSU cover screws stainless steel 8
5 LSU housing cover aluminum die casting 1
6 Shaft stainless steel 1
7 Limit switches - 2
8 Cams (eccentrics) polycarbonate 2
9 LSU case aluminum die casting 1
10 Terminal block - 1
11 Ground terminal stainless steel 1
12 Hole (thread) for cable entry - 2
13 bracket stainless steel 1

Spezifikation
  • Herkunftsland
    China
  • Körpermaterial
    Edelstahl AISI 304
  • Maximal zulässige Temperatur
    180 °C
  • Verbindungstyp
    Gewinde
  • Steuerungstyp
    Pneumatischer Antrieb
  • Betriebsumgebung
    Wasser, Dampf, Neutrale Medien
  • Anwendungen
    Lebensmittelindustrie
  • Typ der Dichtung
    Silizium
  • Disc material
    Edelstahl AISI 304
  • Manuelle Übersteuerung
    Hexagon
  • Endschalter
    Ja
  • Typ des pneumatischen Antriebs
    Doppelwirkung

Bewertungen (0)

Dokumentation
nullLimit switch ELEPHANT APL-410N EX explosion-proof
nullData sheet for limit switch unit Elephant APL-410N EX
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullButterfly valve Elephant WBV3131x-2W-T-H
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
