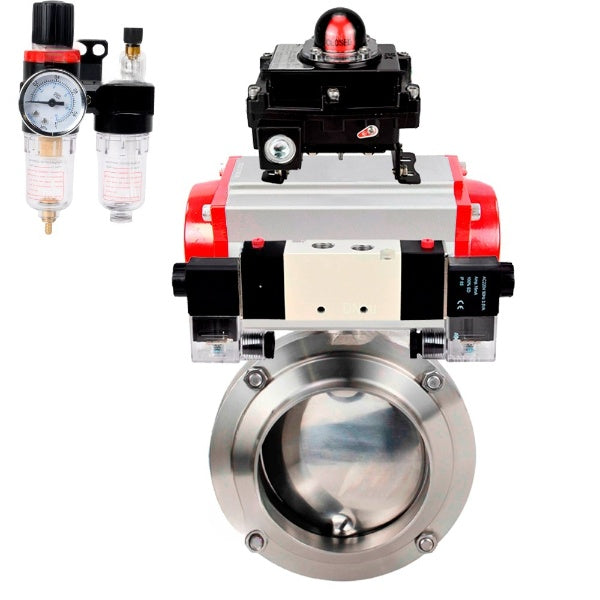

Water Butterfly valves Elephant WBV3131S-2W-W-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-SA, pneumatic distributor 4V320-08 220V, LSU APL-410N EX, ATU AFC2000

€428,86
inkl. MwSt. Versand wird beim Checkout berechnet.

Lieferung und Versand

Die Lieferkosten werden während des Bestellvorgangs festgelegt und variieren je nach mehreren Faktoren, einschließlich Produkttyp, Lieferzeit, Dienstleister und Zielland.

Wenn Sie Fragen zu unseren Produkten, Lieferoptionen oder anderen Themen haben, zögern Sie nicht, uns zu kontaktieren.

Beschreibung

Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.
Pneumatic Elephant pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valves control process with maximum torque up to 2128 Nm.
Pneumatic valves are used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
Limit switch unit is an electrical device designed for opening and closing of the working circuit and for visualization of the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. The use of limit switch units makes it possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.
Air treatment unit is designed to purify compressed air from moisture droplets and solid particles, remove condensate, automatically maintain pressure at the set level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system.







Technical characteristics of water butterfly valves Elephant WBV3131S-2W-W-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-SA, pneumatic distributor 4V320-08 220V, limit switch unit APL-410N EX, ATU AFC2000:

Characteristic

Value

Type of valve

Rotary disc

Diameter

15–100 mm

Nominal pressure

10 bar

Working medium temperature

From -50 to +180°C

Application

Food industry

Type of connection

Under weld

Type of control

Pneumatic actuator

Tightness class

A

Warranty

12 months



Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator SA - with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


SA pneumatic actuators rotary with return springs



Technical characteristics of pneumatic valves Elephant 4V320-08 220V:

Characteristics Value
Pneumatic valve model 4V320-08 220V
Supply voltage 220V
Type of pneumatic valve Spool
Nominal pressure 12 bar
Working pressure 1.5...8 bar
Ambient temperature From -5 to +50 ⁰C
Working medium Purified air (purification fineness 40 µm)
Response frequency 5 cycles/s
Protection class IP65
Control Two-way electromagnetic
Body material Aluminum alloy and technopolymer
Response time 0.05 s
Diameter of working channels 1/4"




Technical characteristics of explosion-proof limit switch units Elephant APL-410N EX:

Characteristics Value
Model of limit switch unit APL-410N EX
Protection All-weather IP65, explosion-proof Exd IIB T6
Ambient temperature From -25°C to +80°C
Cable entry thread 2 x NPT1/2”
Terminal block 8 cells 0.05-2.5mm2
Nominal current 10 A
Nominal voltage 250V
Switches/sensors Two mechanical switches / two proximity sensors
Full swivel angle 90°
Service life 10 years





Technical characteristics of air treatment units Elephant AFC2000:

Characteristic

Value

Operating pressure

8 bar

Maximum pressure

10 bar

Adjustable pressure range

0.5...9 bar

Fracture pressure

15 bar

Working temperature

From -5°C to +60°C

Air connection

1/4"

Particle size filtration

40 µm

Oil viscosity

ISO VG 32





Overall and installation sizes of water butterfly valves Elephant WBV3131S-2W-W-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-SA, pneumatic distributor 4V320-08 220V, limit switch unit APL-410N EX, ATU AFC2000:

Diameter D, mm t, mm D1, mm A, mm H, mm J, mm K, mm
DN15 18 1.5 78 50 86 126 8x8
DN20 23 1.5 78 50 86 126 8x8
DN25 29 1.5 78 50 86 126 8x8
DN32 35 1.5 86 50 90 126 8x8
DN40 41 1.5 90 50 92 126 8x8
DN50 53 1.5 106 52 104 133 10x10
DN65 70 2.0 124 56 113 144 10x10
DN80 85 2.0 139 60 123.5 160 10x10
DN100 104 2.0 159 64 133.5 160 10x10





Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130



Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Sketch of dimensions of SA pneumatic actuators with return springs



Overall and installation sizes of pneumatic valves Elephant 4V320-08 220V:

A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
H, mm 82.4
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 83.4
P, mm 22
S, mm 20
T, mm 6.5
U, mm 2.4





Dimensions and installation sizes of explosion-proof limit switch units Elephant APL-410N EX:

A, mm 177
B, mm 174
C, mm 178
D, mm 101
E, mm 76
F, mm 57
G, mm 55
H, mm 23
I, mm 27
J, mm 3
K, mm 4
d1, mm 5
d2, mm 9.5




Dimensions and sizes of air treatment unit Elephant AFC2000:

Model AFC2000
A, mm 162
B, mm 88
C, mm 139
D, mm 31
E, mm 53.5
F, mm 12
G, mm 8
H, mm 7
I, mm 13.3
J, mm 39
K, mm 5
L, mm 40
M, mm 32
N, mm 53
O, mm 29
P, mm 6
R, mm 41.5




Materials of water butterfly valves Elephant WBV3131S-2W-W-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-SA, pneumatic distributor 4V320-08 220V, limit switch unit APL-410N EX, ATU AFC2000:

№ Part Name Material
1 Body Stainless steel AISI 304
2 Rotary unit Stainless steel AISI 304
3 Disc Stainless steel AISI 304
4 Seat seal EPDM or Silicon
5 Nut Steel A2~70
6 Bolt Steel A2~70
7 Plug ABS plastic
8 Handle Polyamide plastic



Materials of parts of SA pneumatic actuators with return springs:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of SA pneumatic actuators with return springs

Spezifikation
  • Herkunftsland
    China
  • Körpermaterial
    Edelstahl AISI 304
  • Maximal zulässige Temperatur
    180 °C
  • Verbindungstyp
    zum Schweißen
  • Steuerungstyp
    Pneumatischer Antrieb
  • Betriebsumgebung
    Wasser, Dampf, Neutrale Medien
  • Anwendungen
    Lebensmittelindustrie
  • Typ der Dichtung
    Silizium
  • Disc material
    Edelstahl AISI 304
  • Manuelle Übersteuerung
    Hexagon
  • Endschalter
    Ja
  • Typ des pneumatischen Antriebs
    mit Rückholfedern

Bewertungen (0)

Dokumentation
nullAir treatment unit AFC2000 ELEPHANT
nullData sheet for limit switch unit Elephant APL-410N EX
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullButterfly valve Elephant WBV3131x-2W-W-H
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
