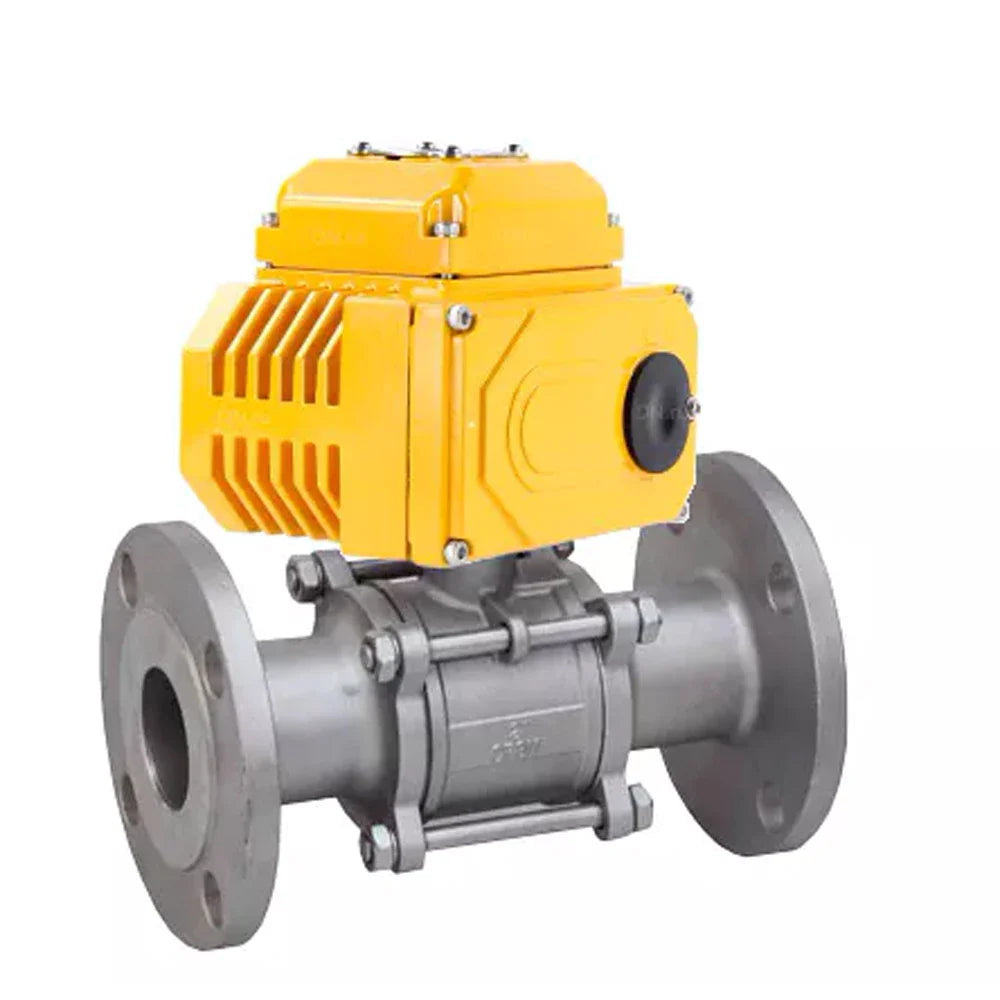

Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange, body - 316 stainless steel, full bore, seal - PTFE, with a quarter-turn electric drive Elephant QT-N-EM-O1-380VAC-U1

€1.336,01
inkl. MwSt. Versand wird beim Checkout berechnet.

Lieferung und Versand

Die Lieferkosten werden während des Bestellvorgangs festgelegt und variieren je nach mehreren Faktoren, einschließlich Produkttyp, Lieferzeit, Dienstleister und Zielland.

Wenn Sie Fragen zu unseren Produkten, Lieferoptionen oder anderen Themen haben, zögern Sie nicht, uns zu kontaktieren.

Beschreibung

The Elephant BV3232P(3pc)-FP-F-ISO-H ball valve is used as a shut-off valve in heat supply systems, water supply systems, steam, fuel systems, and pneumatic systems with compressed air and neutral gases. The BV3232P(3pc)-FP-F-ISO-H series valves can be installed in systems transporting liquid and gaseous media (water, steam, petroleum products, liquids, neutral media, and gaseous media) that are non-corrosive to the valve materials.





Technical parameters of the ball valve Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar

Name Value
Working fluid temperature, °C from -20 to 150
Tap type two-way
Application water supply, heat supply, pneumatic systems
Working fluid water, steam, petroleum products, liquids, neutral media, gaseous media
Pipeline connection flanged
Water-drawable no
Flow section type full bore
Tightness class A
Control type With electric drive
Connection flanged
Control With electric drive
Presence of limit switches no
Presence of pneumatic valve yes
Average service life, years 10
Country of manufacture China





Dimensions and sizes of the ball valve Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar

Dn, mm D, mm L, mm L1, mm F, mm
65 185 290 200 128
80 200 310 200 128
100 235 350 269 155
Краны шаровые DN.ru BV3232P(3pc)-FP-F-ISO-H Ду65-100 Ру25-40 фланцевые с ISO-фланцем, корпус - нержавеющая сталь 316, полнопроходные, уплотнение - PTFE, с электроприводом четвертьоборотным DN.ru QT-N-EM-O1-24VDC-У1

Sketch of a ball valve Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar





Table of parts and materials for a ball valve Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar

Part Name Quantity, pcs Material
1 Flange 2 Stainless steel AISI 316
2 Stud 4/6/8 Stainless steel AISI 304
3 Nut 8/12/16 Stainless steel AISI 304
4 Gasket 8/12/16 Stainless steel AISI 304
5 Seal 2 PTFE
6 Ball 1 Stainless steel AISI 316
7 Housing 1 Stainless steel AISI 316
8 Thrust Pad 1 PTFE
9 Plunger 1 Stainless steel AISI 316
10 Packing 3 PTFE
11 Thrust Ring 1 Stainless steel AISI 304
12 Positioning Screw 1 Stainless steel AISI 304
13 Sliding Cover 1 Stainless steel AISI 304
14 Positioning Bolt 1 Stainless steel AISI 304
15 Hex Nut 1 Stainless steel AISI 304
16 Handle 1 Stainless steel SS 201 + PVC
17 Lock Stopper 1 Stainless steel SS 201
Sketch of the parts and materials of the ball valve Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar




Technical parameters of the Elephant QT-N-EM-O1-380VDC-U1 electric drive

Name Meaning
Model QT-N-EM-O1-380VDC-U1
Pressure, bar 2 ÷ 8
Краны шаровые DN.ru BV3232P(3pc)-FP-F-ISO-H Ду65-100 Ру25-40 фланцевые с ISO-фланцем, корпус - нержавеющая сталь 316, полнопроходные, уплотнение - PTFE, с электроприводом четвертьоборотным DN.ru QT-N-EM-O1-380VAC-У1

Wiring diagram for the Elephant QT-N-EM-O1-380VDC-U1 electric drive





Table of parts and materials for the Elephant QT-N-EM-O1-380VDC-U1 electric drive

Part Names
1 Output Shaft
2 Cable Lock
3 Mechanical Stop
4 Manual Override
5 Housing
6 Cover
7 Sight Glass
8 Dust Protection

Sketch of parts and materials for the Elephant QT-N-EM-O1-24VDC-U1 electric drive

Spezifikation

  • Herkunftsland
    China
  • Körpermaterial
    Stainless steel
  • Maximal zulässige Temperatur
    150 °C
  • Verbindungstyp
    Flanged
  • Steuerungstyp
    Electric drive
  • Betriebsumgebung
    Water, Steam, Petroleum products, Liquid media, Neutral media, Gaseous media
  • Anwendungen
    Water Supply, Heat supply, Pneumatic systems
  • Typ der Dichtung
    PTFE / Fluoroplastic / Teflon
  • Sperrmaterial
    Stainless steel
  • Drehwinkel
    90°
