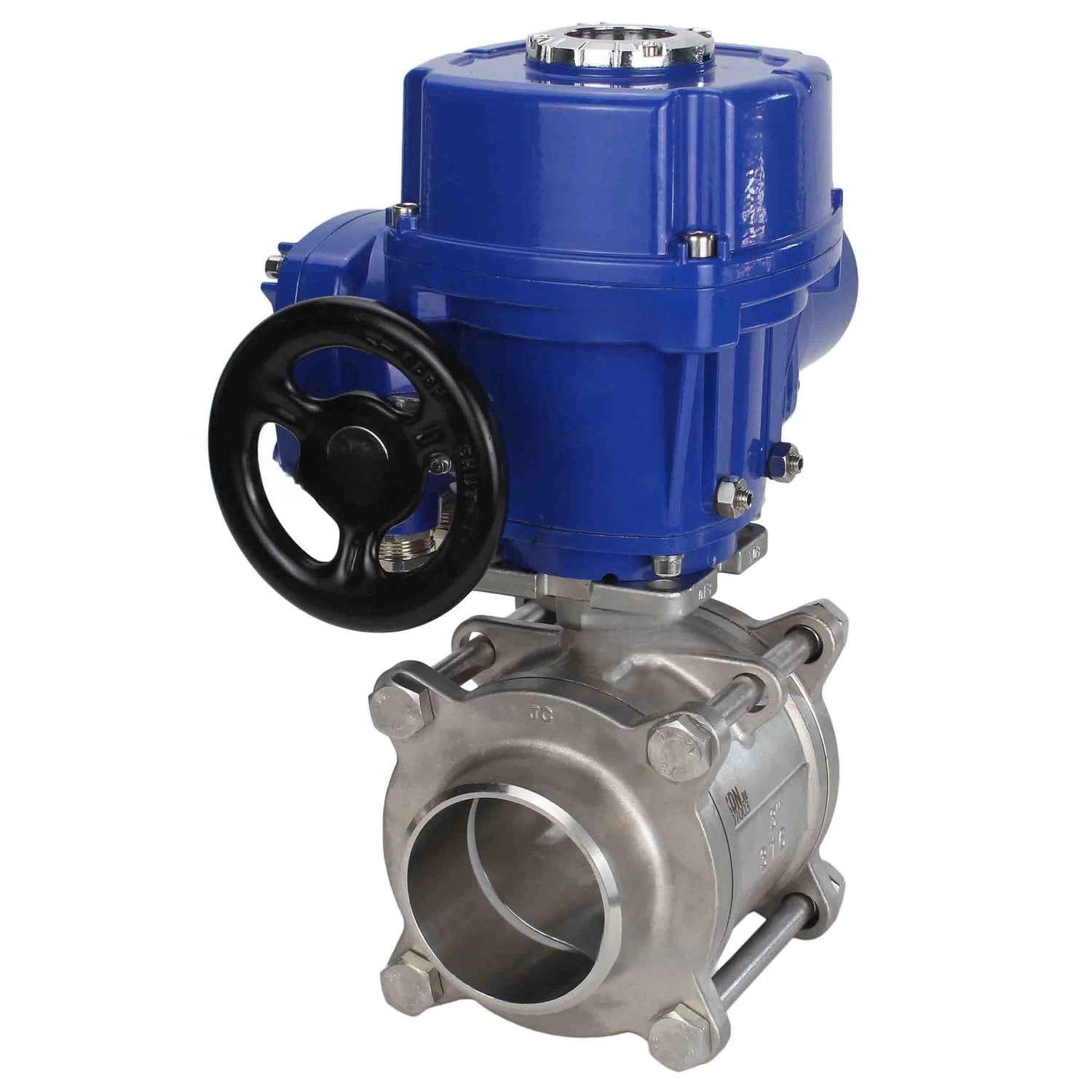

Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-100 63/25 bar SS316 Full bore weld-in, stainless steel body with 1/4-turn electric actuator Elephant QT-N-M-O2-380VAC-U1
Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-100 63/25 bar SS316 Full bore weld-in, stainless steel body with 1/4-turn electric actuator Elephant QT-N-M-O2-380VAC-U1 - DN100 / 25 bar ist auf Lager und wird versandt, sobald es wieder verfügbar ist
Verfügbarkeit für Abholungen konnte nicht geladen werden
Lieferung und Versand
Lieferung und Versand
Die Lieferkosten werden während des Bestellvorgangs festgelegt und variieren je nach mehreren Faktoren, einschließlich Produkttyp, Lieferzeit, Dienstleister und Zielland.
Beschreibung
Beschreibung
Ball valves are used as shut-off valves in heating and water supply systems, steam, fuel, and pneumatic systems with compressed air and neutral gases. Valves of this series can be installed in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-corrosive to the valve materials.
Quarter-turn electric actuators are designed for remote and local control of shut-off pipeline valves with a quarter-turn shut-off element. They are used in various industries: gas, oil, metallurgy, food, housing and utilities, etc.
Technical parameters of the ball valve Elephant BV3232P(3pc)-FP-W-ISO-H DN10-100 63/25 bar
Name | Value |
Nominal diameter DN, mm | 10-100 |
Working pressure, bar | DN10÷32 – 63 |
DN40÷50 – 40 | |
DN65÷100 – 25 | |
Working fluid | -20 to +200 |
Pipeline connection | water, steam, petroleum products, and other liquid or gaseous media neutral to valve materials |
Ball valve bore type | welding/welding |
Ball valve tightness class | full bore |
Additional information | A |
Climate rating | installation of electric or pneumatic actuator possible (ISO 5211-2001) |
Average life, opening/closing cycles | 10 |
Средний ресурс, циклов закрытие/открытие | 40,000 – 60,000 |
Dimensions and sizes of the ball valve Elephant BV3232P(3pc)-FP-W-ISO-H DN10-100 63/25 bar
Model | L, mm | D, mm |
10 | 66 | 10 |
15 | 65 | 19 |
20 | 74 | 22 |
25 | 82 | 27 |
32 | 99 | 35 |
40 | 108 | 40 |
50 | 132 | 53 |
65 | 161 | 64 |
80 | 196 | 79 |
100 | 245 | 103 |
Sketch of a ball valve Elephant BV3232P(3pc)-FP-W-ISO-H DN10-100 63/25 bar
Table of parts and materials for a ball valve Elephant BV3232P(3pc)-FP-W-ISO-H DN10-100 63/25 bar
№ | Part Name | Material |
1 | Cover | AISI 316 stainless steel |
2 | Seal | PTFE |
3 | Ball | AISI 316 stainless steel |
4 | Stem | AISI 316 stainless steel |
5 | O-Ring | PTFE |
6 | Body | AISI 316 stainless steel |
7 | Seal | PTFE |
8 | Gland | AISI 304 stainless steel |
10 | Nut | AISI 304 stainless steel |
11 | Screw | AISI 304 stainless steel |
12 | Nut | AISI 304 stainless steel |
Sketch of the parts and materials of the ball valve Elephant BV3232P(3pc)-FP-W-ISO-H DN10-100 63/25 bar
