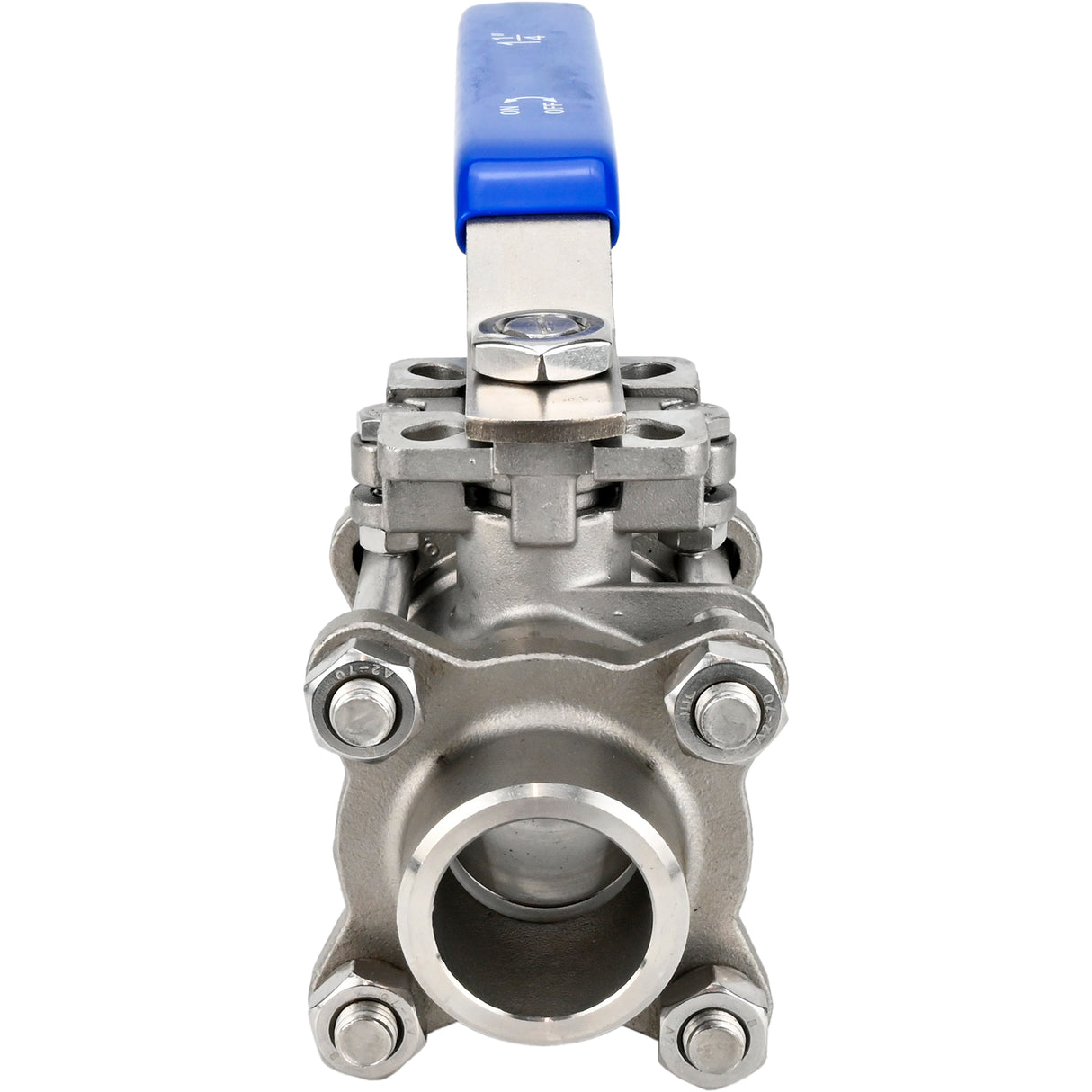

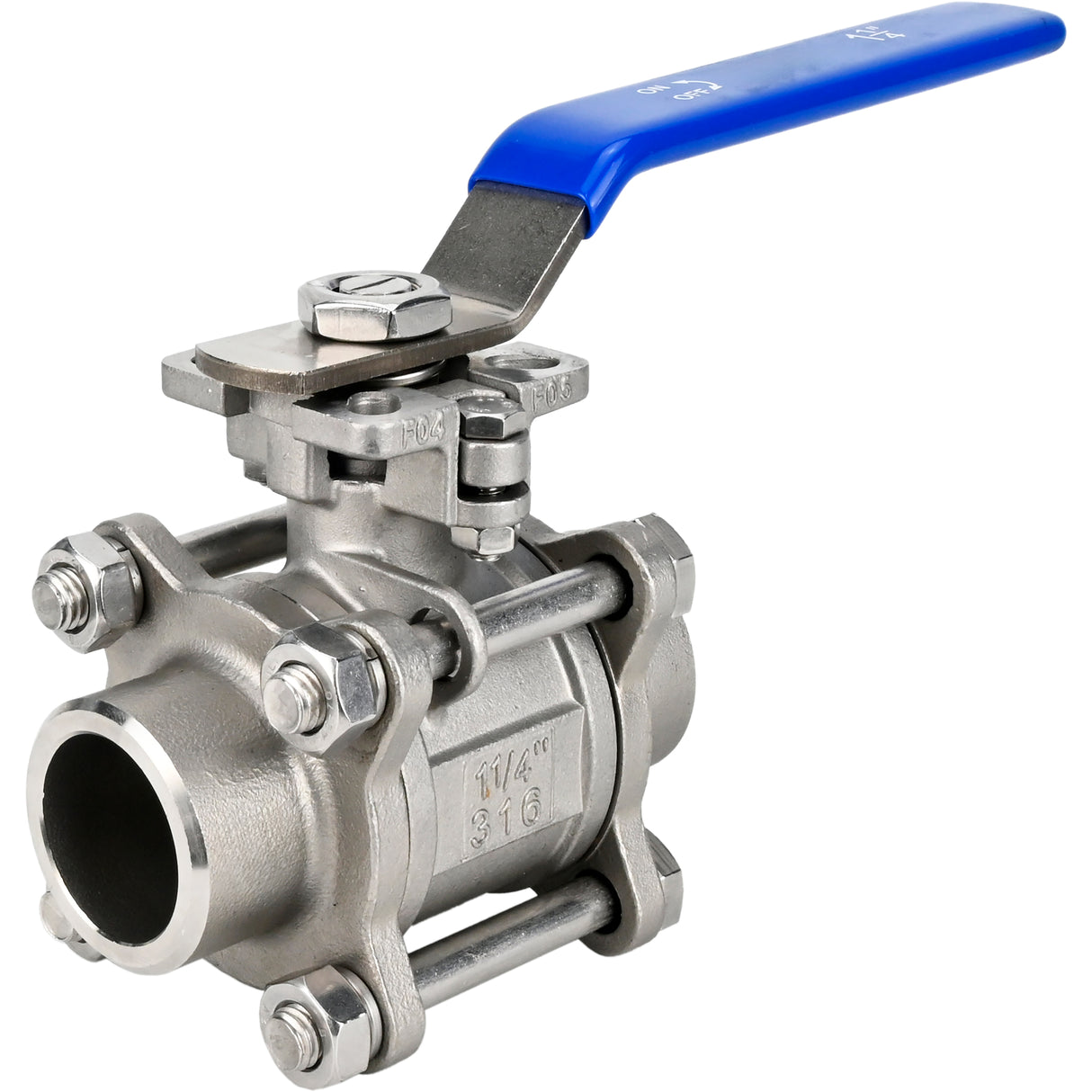

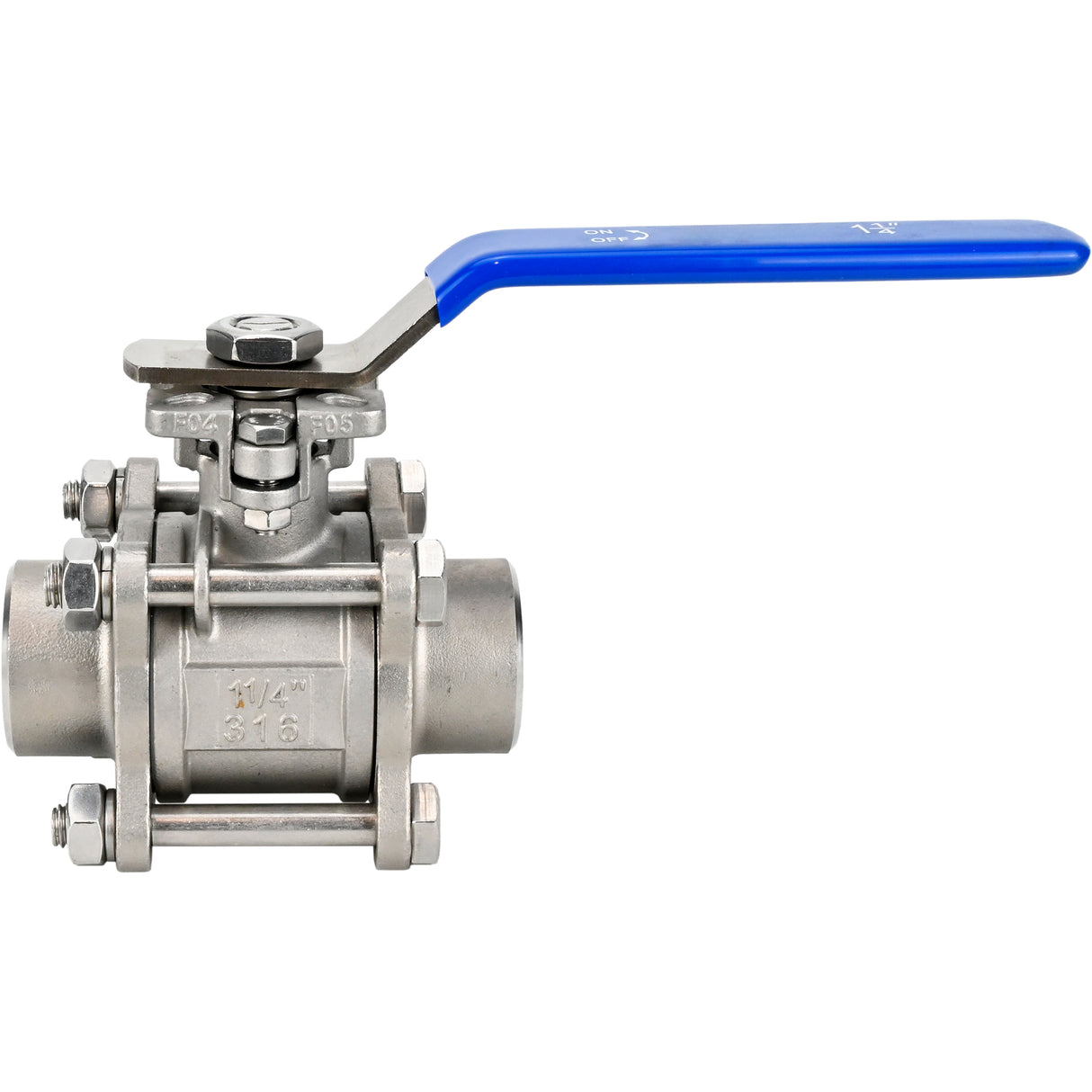

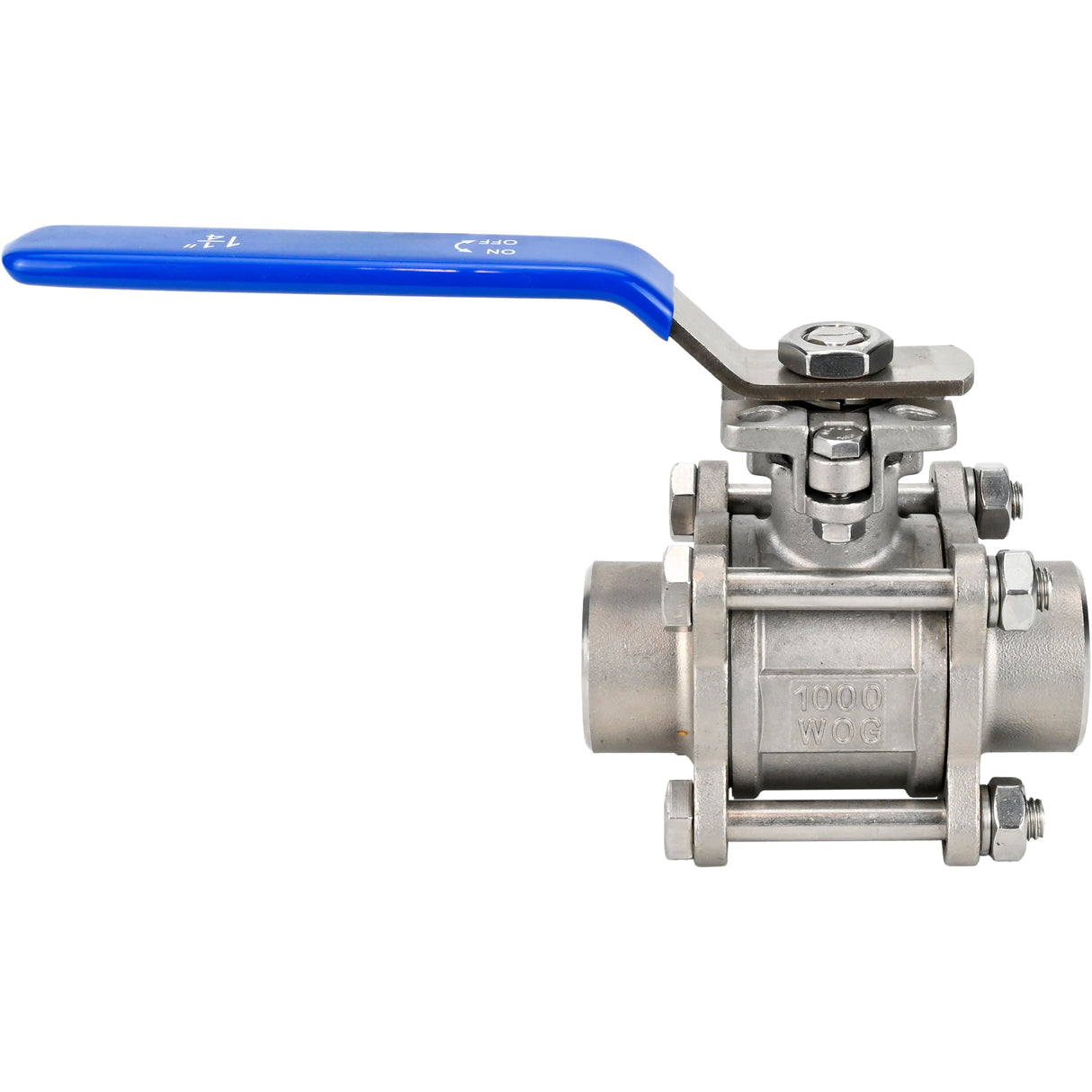

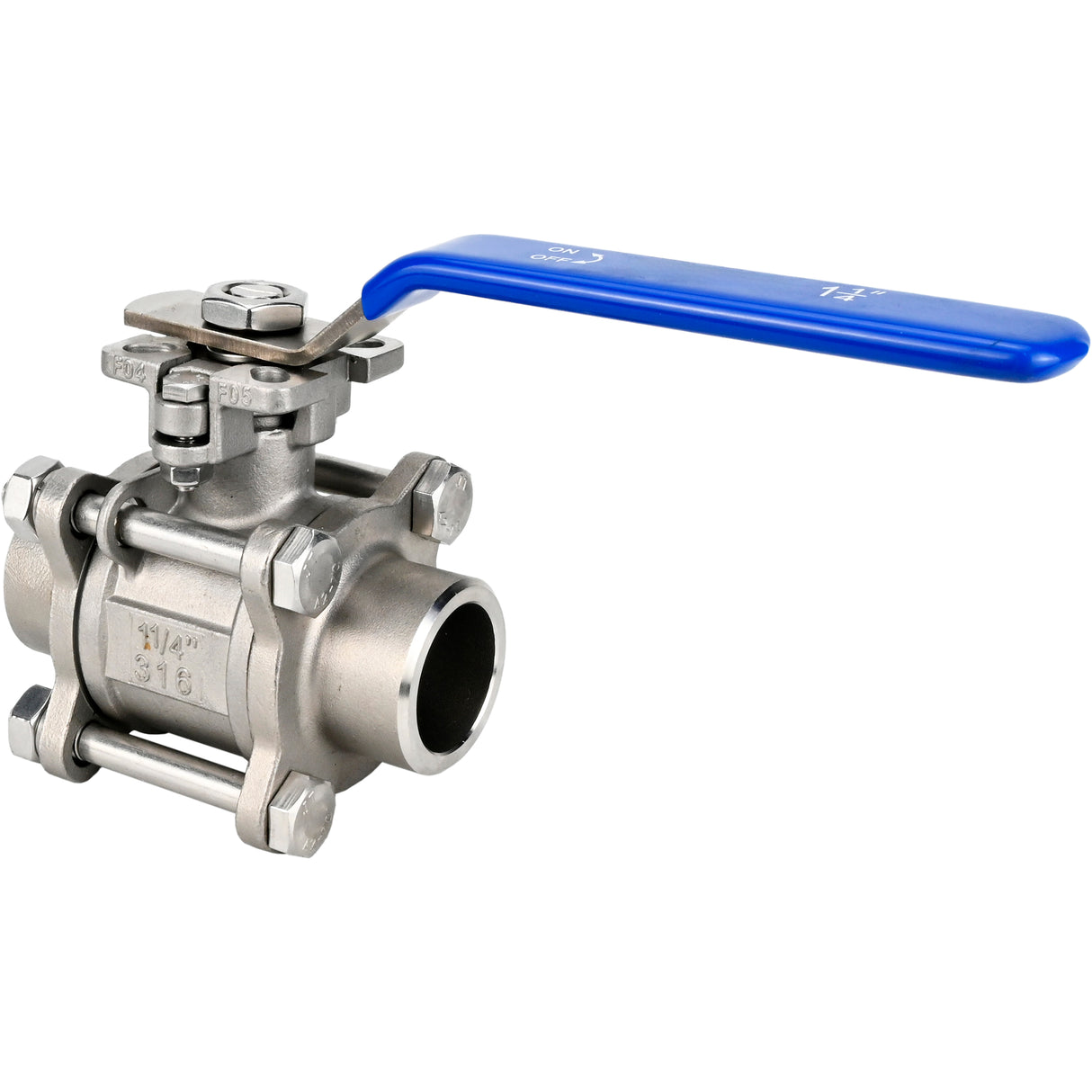

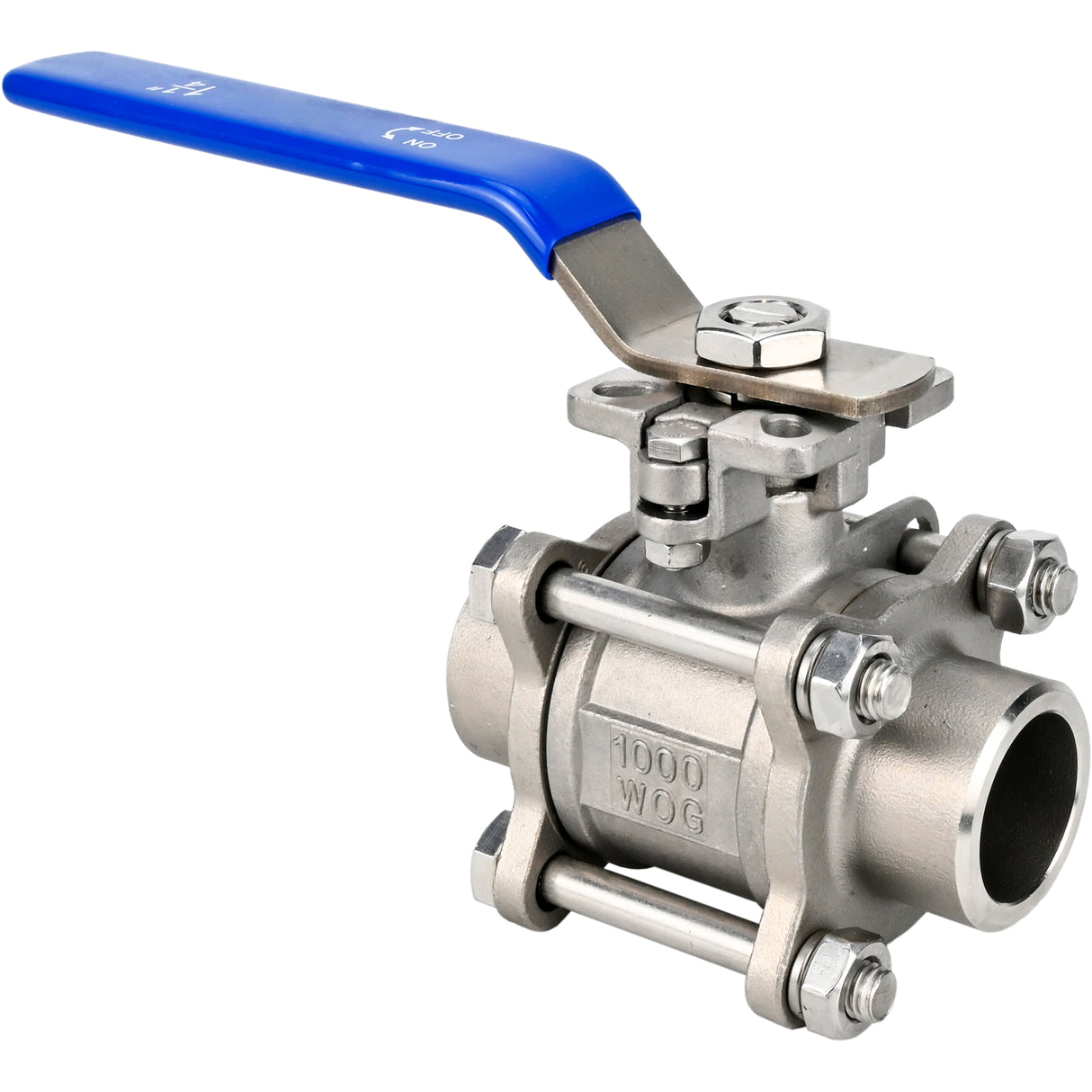

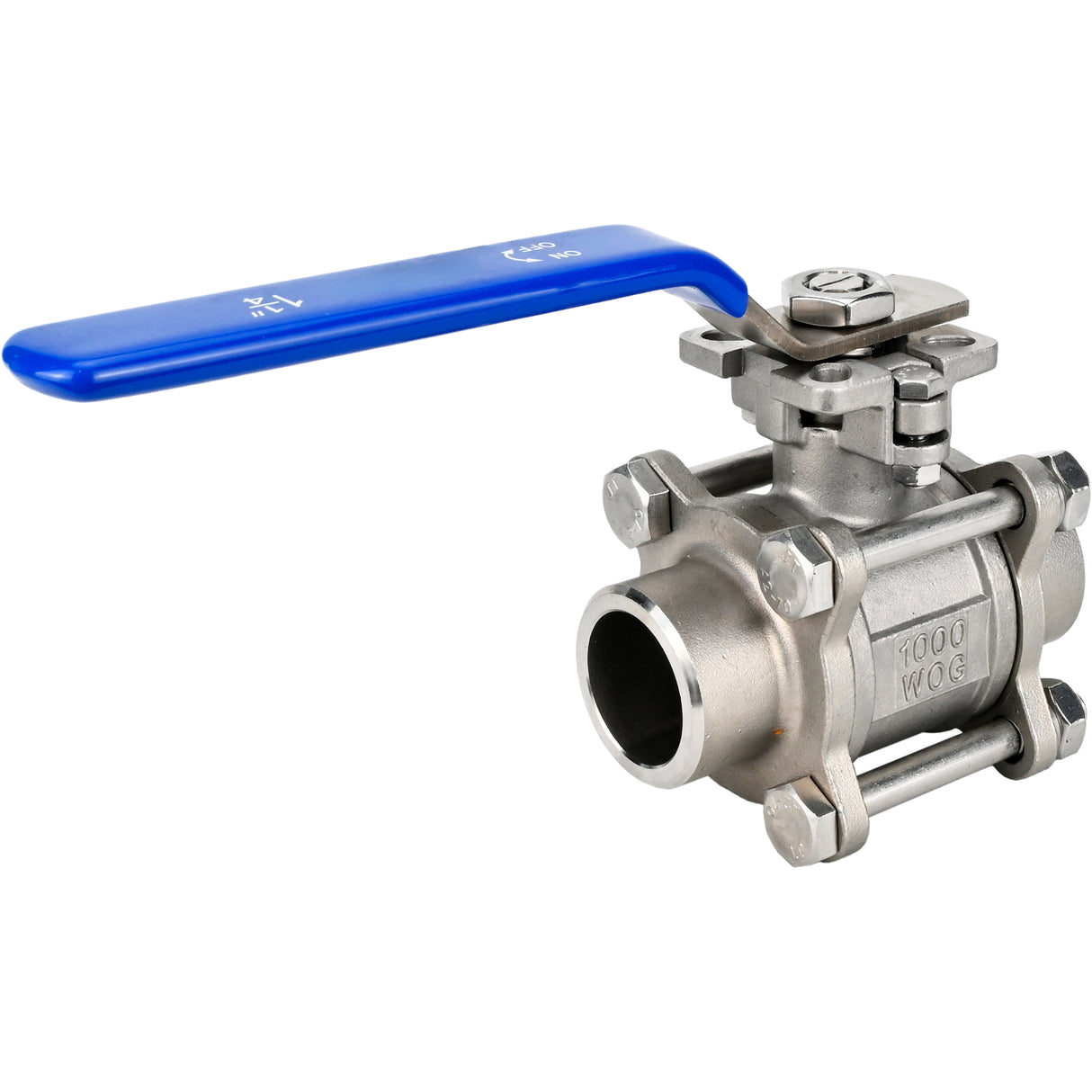

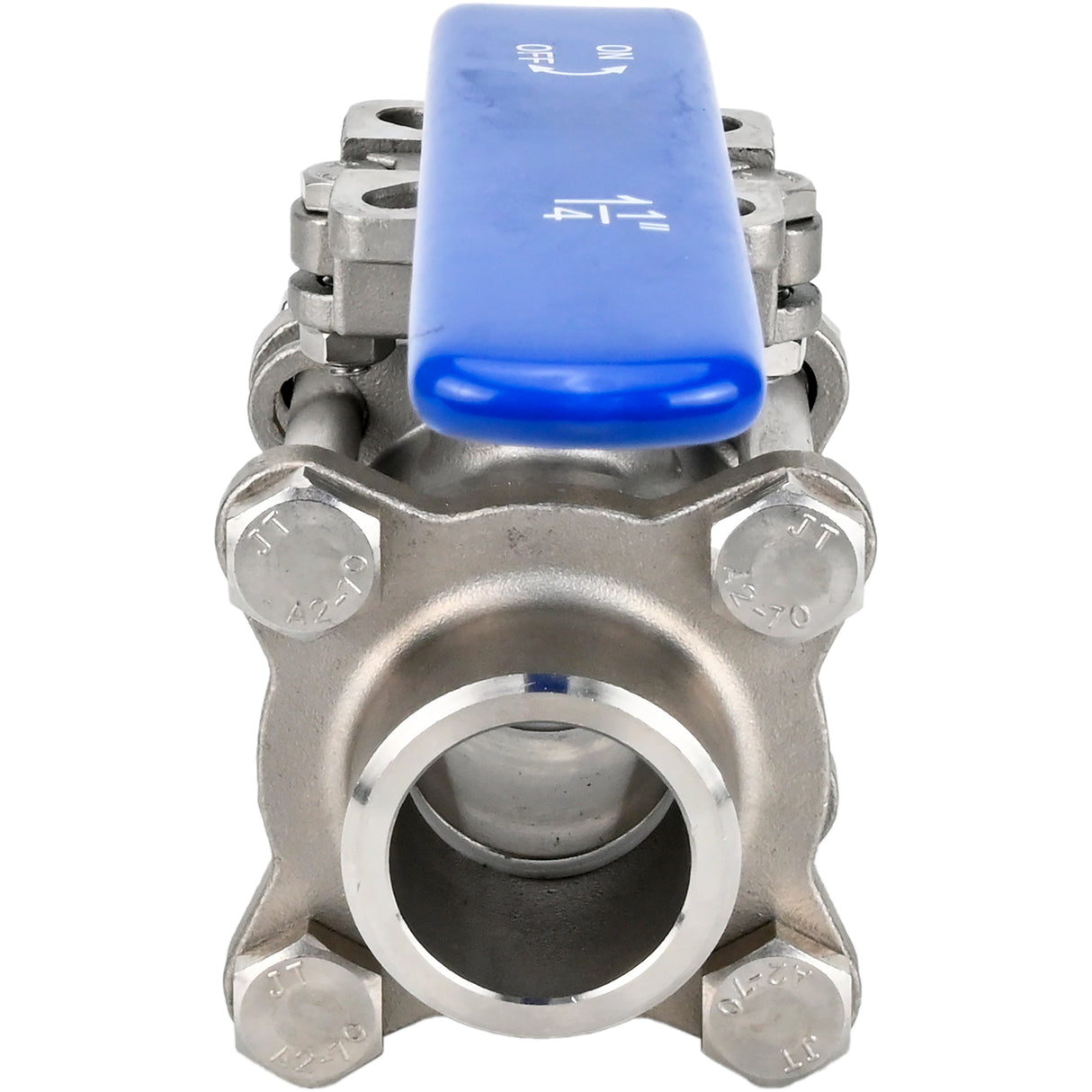

Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN15-32 63 bar full bore, three-part, body - 316 stainless steel, seal - PTFE, for welding, with handle, with ISO flange, WDVF
Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN15-32 63 bar full bore, three-part, body - 316 stainless steel, seal - PTFE, for welding, with handle, with ISO flange, WDVF - DN15 / 63 bar ist auf Lager und wird versandt, sobald es wieder verfügbar ist
Verfügbarkeit für Abholungen konnte nicht geladen werden
Lieferung und Versand
Lieferung und Versand
Die Lieferkosten werden während des Bestellvorgangs festgelegt und variieren je nach mehreren Faktoren, einschließlich Produkttyp, Lieferzeit, Dienstleister und Zielland.
Beschreibung
Beschreibung
The BV3232P(3pc)-FP-W-ISO-H WDVF ball valve is used as a shut-off valve in heat and water supply systems, steam, fuel, and pneumatic systems with compressed air and neutral gases. BV3232P(3pc)-FP-W-ISO-H WDVF series valves can be installed in systems transporting liquid and gaseous media (water, steam, petroleum products, and neutral media) that are non-corrosive to the valve materials.
Technical parameters of the ball valve Elephant BV3232P(3pc)-FP-W-ISO-H DN15-32 63 bar
Name | Value |
Nominal pressure, bar | 63 |
Working fluid temperature, °C | -29 to 180 |
Tap type | Two-way |
Application | Water supply, heat supply, steam supply |
Working fluid | Water, steam, petroleum products, neutral media |
Pipeline connection | Weld-on |
Water-drawable | No |
Flow area type | Full bore |
Tightness class | A |
Control type | Manual |
Connection | Weld-on |
Control | Handle |
Presence of limit switches | No |
Average service life, years | 10 |
Country of manufacture | China |
Dimensions and sizes of the ball valve Elephant BV3232P(3pc)-FP-W-ISO-H DN15-32 63 bar
DN | Ød, mm | ØD, mm | E, mm | H, mm |
15 | 15 | 21.3 | 120 | 55 |
20 | 20 | 26.9 | 135 | 66 |
25 | 25 | 33.7 | 160 | 71 |
32 | 32 | 42.4 | 170 | 81 |
Sketch of a ball valve Elephant BV3232P(3pc)-FP-W-ISO-H DN15-32 63 bar
Table of parts and materials for a ball valve Elephant BV3232P(3pc)-FP-W-ISO-H DN15-32 63 bar
№ | Part Name | Material |
1 | Body | Stainless steel AISI 316 |
2 | Bonnet | Stainless steel AISI 316 |
3 | Ball | Stainless steel AISI 316 |
4 | Seal | PTFE |
5 | Coupling Gasket | PTFE |
6 | Thrust Washer | PTFE |
7 | Packaging | PTFE |
8 | Bushing | Stainless steel AISI 304 |
9 | Stem | Stainless steel AISI 304 |
10 | Gasket | Stainless steel AISI 304 |
11 | Washer | Stainless steel AISI 304 |
12 | Washer | Stainless steel AISI 304 |
13 | Nut | Stainless steel AISI 304 |
14 | Bolt | Stainless steel AISI 304 |
15 | Handle | Stainless steel SS 201 |
16 | Handle Cover | PVC |
17 | Nut | Stainless steel AISI 304 |

Sketch of the parts and materials of the ball valve Elephant BV3232P(3pc)-FP-W-ISO-H DN15-32 63 bar
