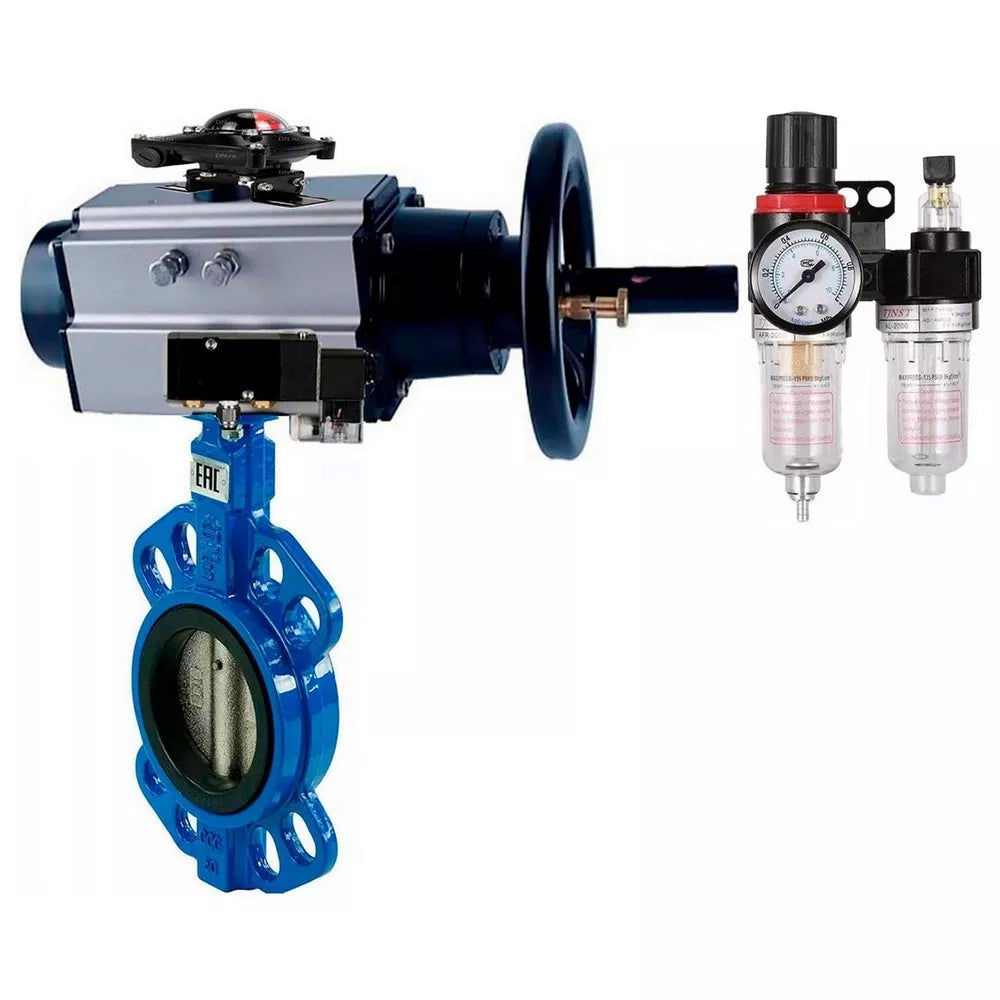

Vanne papillon d'eau Elephant WBV1132N-2W-Fb-H, matériau du corps - fonte grise GG25, matériau du disque - acier inoxydable AISI 316L, joint - NBR, avec actionneur pneumatique double effet PA-DA-105-1, 4M310-08 220V, BKV APL-210NBPV AFC2000
Vanne papillon d'eau Elephant WBV1132N-2W-Fb-H, matériau du corps - fonte grise GG25, matériau du disque - acier inoxydable AISI 316L, joint - NBR, avec actionneur pneumatique double effet PA-DA-105-1, 4M310-08 220V, BKV APL-210NBPV AFC2000 - DN125 220V / 16 bars ist auf Lager und wird versandt, sobald es wieder verfügbar ist
Verfügbarkeit für Abholungen konnte nicht geladen werden
Lieferung und Versand
Lieferung und Versand
Die Lieferkosten werden während des Bestellvorgangs festgelegt und variieren je nach mehreren Faktoren, einschließlich Produkttyp, Lieferzeit, Dienstleister und Zielland.
Beschreibung
Beschreibung
GG25-316L-NBR butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Technical parameters of Elephant WBV1132N-2W-Fb-H butterfly valves, body material - gray cast iron GG25, disc material - stainless steel AISI 316L, sealing - NBR, with double-acting pneumatic actuator PA-DA, 4M310-08 220V, LSU APL-210N, ATU AFC2000:
| Name | Significance |
| Working pressure, bar | 16 |
| Working medium temperature, °C | from -20 to 90 |
| Application | water supply, heating |
| Connection to pipeline | interflanged |
| Gate type | rotary disk |
| Control type | pneumatic actuator |
| Manufacturer's country | China |
Butterfly valves WBV1132N-2W-Fb-H, body material - grey cast iron GG25, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA, 4M310-08 220V, LSU APL-210N, ATU AFC2000
Dimensions and dimensions of butterfly valves Elephant WBV1132N-2W-Fb-H, body material - gray cast iron GG25, disc material - stainless steel AISI 316L, sealing - NBR, with double-acting pneumatic actuator PA-DA, 4M310-08 220V, LSU APL-210N, ATU AFC2000:
| DN | A, mm | B, mm | A1, mm | W, mm | I, mm | C, mm |
| 125 | 178 | 125 | 495 | 200 | 162 | 139 |
| 150 | 191 | 140 | 495 | 200 | 162 | 139 |
Sketch Butterfly valves WBV1132N-2W-Fb-H, body material - grey cast iron GG25, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA, 4M310-08 220V, LSU APL-210N, ATU AFC2000
Technical parameters of pneumatic actuator PA-DA-105-1:
| Type of pneumatic actuator | double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Operating temperature, °C | -20 to +80 |
| Visual position indicator | open / closed |
| Manual control | handwheel |
| Swivel angle, ° | 90 ± 5 |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Air supply connection thread | G 1/4ʺ |
| ISO flange type | F07/F10 |
| Stem square, mm | 22x22 |
| Weight, kg | 9 |
| Average life, cycles closed/open | 300 000 |
Pneumatic actuator PA-DA-105-1
Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| W, mm | 200 |
| J, mm | 102 |
| K, mm | 70 |
| L, mm | M10x16 |
| M, mm | M8x13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1
PA-DA-105-1 air actuator parts and materials table:
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | External washer | Engineering plastic |
| 6 | Adjustment screw | Stainless steel 304 |
| 7 | Nut | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Body | Extruded aluminum alloy |
| 10 | Piston | Die cast aluminum alloy |
| 11 | Piston O-ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End cap O-ring | NBR |
| 14 | End cap | Die cast aluminum alloy coated with polyester paint |
| 15 | Fixing screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Parts and material sketch of the PA-DA-105-1 pneumatic actuator
Technical characteristics of the pneumatic valve 4m310-08 220V:
| Design | spool type |
| Nominal pressure PN, MPa (kg/cm2) | 1,2 (12) |
| Working pressure, bar | 1,5...8 |
| Working medium | filtered compressed air |
| Ambient temperature t, ⁰C | +5 to +50 |
| Response frequency | 5 cycles/s |
| Manual duplication | is |
| Degree of protection | IP 65 |
| Mounting | through holes in the housing |
| Enclosure material | anodized aluminum |
| Response time | 0.05 s |
Technical parameters of limit switch unit APL-210N:
| Name | Value |
| Model of limit switch unit | APL-210N |
| Maximum voltage of limit switch, V | 250 |
| Working environment temperature, °C | -40 to +80 |
| Service life, years | 10 |
Limit switch unit APL-210N
Dimensions and dimensions of the APL-210N limit switch unit:
| Model | H, mm | L, mm | B, mm | D, mm | D1, mm | M |
| APL-210N | 77 | 112 | 88 | 10 | 5 | 20x1.5 |
Sketch of dimensions and dimensions of limit switch unit APL-210N
Main parameters of the AFC2000 air treatment unit:
| Operating pressure, bar | 8 |
| Maximum pressure, bar | 10 |
| Adjustable pressure range, bar | 0,5 ÷ 9 |
| Breaking pressure, bar | 15 |
| Air connection | 1/4” |
| Operating temperature, C | -5 to +60 |
| Filter particle size, µm | 40 |
| Oil viscosity | ISO VG 32 |
| Weight, kg | 0,395 |
| Set composition | filter-moisture separator, pressure regulator, lubricator, bracket |
Air treatment unit AFC2000
