Vanne papillon d'eau Elephant WBV1413E-2W-Fb-H, matériau du corps - fo – Valve Elephant
Elephant  |  SKU: D050-35059

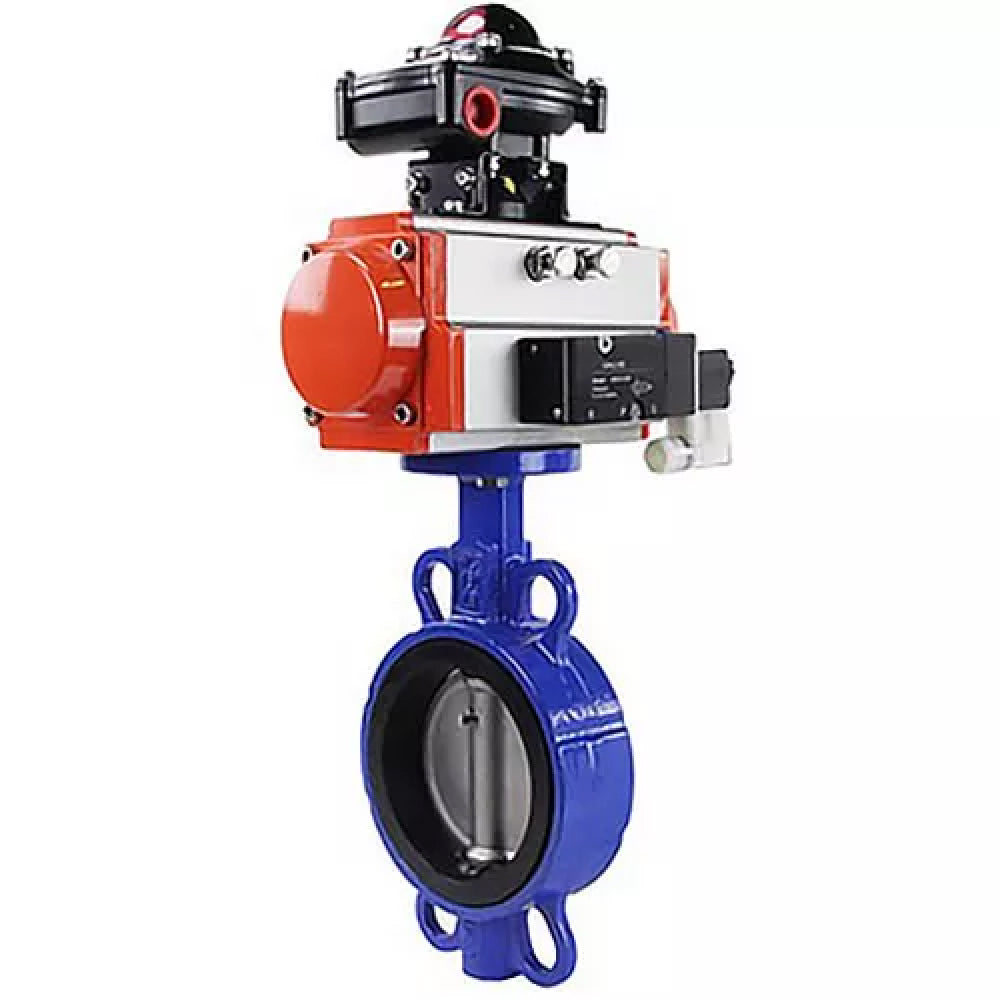

Vanne papillon d'eau Elephant WBV1413E-2W-Fb-H, matériau du corps - fonte GGG50, matériau du disque - fonte GGG40, joint - EPDM, avec actionneur pneumatique double effet PA-DA, 4V320-08 220V, BKV APL-410N EX

€286,25
inkl. MwSt. Versand wird beim Checkout berechnet.

Vanne papillon d'eau Elephant WBV1413E-2W-Fb-H, matériau du corps - fonte GGG50, matériau du disque - fonte GGG40, joint - EPDM, avec actionneur pneumatique double effet PA-DA, 4V320-08 220V, BKV APL-410N EX - DN100 / 16 bars ist auf Lager und wird versandt, sobald es wieder verfügbar ist

Lieferung und Versand

Die Lieferkosten werden während des Bestellvorgangs festgelegt und variieren je nach mehreren Faktoren, einschließlich Produkttyp, Lieferzeit, Dienstleister und Zielland.

Wenn Sie Fragen zu unseren Produkten, Lieferoptionen oder anderen Themen haben, zögern Sie nicht, uns zu kontaktieren.

Beschreibung

The butterfly valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

Pneumatic double-acting rotary actuators PA-DAXXX and pneumatic rotary actuators with return spring PA-SA-XXX are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.

The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

The limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off body of the pipeline valve.





Technical parameters of Elephant WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX:

Name Significance
Working pressure, bar 16
Working medium temperature, °C from -20 to 120
Application water supply, heating
Connection to pipeline interflanged
Gate type swivel disk
Control type pneumatic actuator
Manufacturer's country China



Butterfly valves WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, BLSU APL-410N EX





Dimensions and dimensions of butterfly valves Elephant WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX:

DN B, mm L, mm H, mm H2, mm E, mm B1, mm D, mm
40 55 33 174 105 26 108 40
50 80 43 174 161 26 125 50
65 89 45 174 175 26 125 65
80 95 45 174 181 26 152 80
100 114 52 174 200 26 152 100
125 127 55 174 213 26 152 125
150 139 55 174 226 26 189 150
200 175 60 174 260 36 210 200
250 203 68 174 292 36 268 250
300 242 78 174 337 36 268 300

Sketch Butterfly valves WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX





Materials of butterfly valves Elephant WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX:

№ Name Material
1 Body Cast iron GGG50
2 Disk High-strength cast iron GGG40
3 Seat seal EPDM
4 Upper stem AISI 420 steel
5 Lower stem AISI 420 steel
6, 11 Retaining ring AISI 201 steel
7 Duster NBR
8 Stem gasket NBR
9 Shaft gasket AISI 201 steel
10 Plug plastic

Sketch of parts and materials Butterfly valves WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX



Technical data of PA-DA pneumatic actuators:

Design Double action
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium Filtered compressed air or non-aggressive gases, oils
Maximum particle diameter less than 30 µm2
Operating temperature t, ⁰C - 20 to +80 - 40 to +80 (low temperature version) - 20 to +160 (in dry air)
Adjustment range ± 5 ° for rotation at 0 ° and 90 °
Manual override is
Position indicator open/closed
Operating environment indoors and outdoors. (All internal and external parts are anti-corrosion coated)


PA-DA pneumatic actuator





PA-DA pneumatic actuator component materials:

№ Name Material
1 Enclosure extruded aluminum
2 Side plugs cast aluminum
3 Gear stainless steel
4 Piston steel/aluminum
5 Plugs stainless steel
6 Piston ring NBR
7 Springs spring steel
8 Piston bearing engineering plastic
9 Piston ring NBR
10 Plug NBR
11 Thrust ring engineering plastic
12 Ring engineering plastic
13 Washer stainless steel
14 Spring clip stainless steel
15 Indicator plastic
16 Indicator housing plastic
17 Bearing engineering plastic
18 Cam steel
19 Bearing NBR
20 Bearing engineering plastic
21 Bearing engineering plastic
22 Sealing ring NBR
23 Sealing ring NBR
24 Bearing stainless steel
25 Adjustment nut stainless steel
26 Adjustment screw stainless steel
27 Sleeve aluminum
Parts and material sketch of the PA-DA pneumatic actuator





Technical parameters of pneumatic valve 4V320-08 220V:

Name meaning
Type of pneumatic valve slide valve
Working pressure, bar 1.5 ÷ 1.8
Supply voltage, V 220 V
Total power, Va 4.5
Control double-sided electromagnetic
Frequency of operation, cycle/sec 5

Pneumatic valve 4V320-08 220V





Dimensions and dimensions of pneumatic valve 4V320-08 220V:

Pneumatic valve model 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4

Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V





Technical parameters of limit switch unit APL-410N EX:

Name Value
Model of limit switch unit APL-410N EX
Maximum voltage of limit switch, V 250
Working environment temperature, °C -40 to +80
Service life, years 10

Limit switch unit APL-410N EX



Dimensions and dimensions of limit switch unit APL-410N EX:

Model D, mm D1, mm H, mm L, mm B, mm M, mm
APL-410N EX 9.5 5 174 177 178 8

Sketch of dimensions and dimensions of limit switch unit APL-410N EX

Bewertungen (0)

Documentation
nullLimit switch ELEPHANT APL-410N EX explosion-proof
nullData sheet for limit switch unit Elephant APL-410N EX
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V

Zahlung & Sicherheit

Zahlungsmethoden

    Ihre Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben keinen Zugriff auf Ihre Kreditkarteninformationen.ShareRewrite

    Verfügbare Varianten

    SKUAnschlussgrößeDruckPrice AvailabilityQuantity Add to cart
    D050-35059DN10016 bars €286,25 0 in stock
    D050-35089DN12516 bars €295,94 Out of stock
    D050-35119DN15016 bars €331,13 Out of stock
    D050-35149DN20016 bars €439,20 Out of stock
    D050-35179DN25016 bars €509,26 Out of stock
    D050-35208DN30016 bars €597,02 Out of stock
    D050-35238DN4016 bars €229,10 Out of stock
    D050-35267DN5016 bars €251,42 Out of stock
    D050-35296DN6516 bars €256,82 Out of stock
    D050-35325DN8016 bars €280,30 Out of stock
