Vanne papillon d'eau Elephant WBV1413E-2W-Fb-H, matériau du corps - fo – Valve Elephant
1 9
Elephant  |  SKU: D050-35054

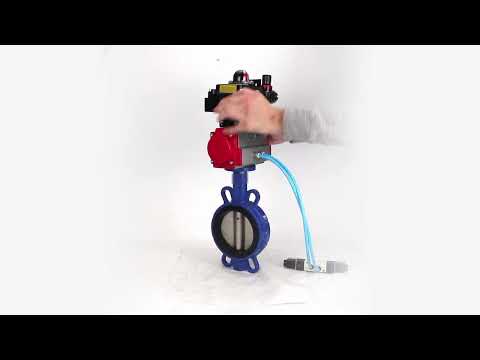

Vanne papillon d'eau Elephant WBV1413E-2W-Fb-H, matériau du corps - fonte GGG50, matériau du disque - fonte GGG40, joint - EPDM, avec actionneur pneumatique double effet PA-DA, 4V320-08 220V, BKV APL-410N EXBPV AFC2000

€322,65
inkl. MwSt. Versand wird beim Checkout berechnet.

Vanne papillon d'eau Elephant WBV1413E-2W-Fb-H, matériau du corps - fonte GGG50, matériau du disque - fonte GGG40, joint - EPDM, avec actionneur pneumatique double effet PA-DA, 4V320-08 220V, BKV APL-410N EXBPV AFC2000 - DN100 / 16 bars ist auf Lager und wird versandt, sobald es wieder verfügbar ist

Lieferung und Versand

Die Lieferkosten werden während des Bestellvorgangs festgelegt und variieren je nach mehreren Faktoren, einschließlich Produkttyp, Lieferzeit, Dienstleister und Zielland.

Wenn Sie Fragen zu unseren Produkten, Lieferoptionen oder anderen Themen haben, zögern Sie nicht, uns zu kontaktieren.

Beschreibung

The butterfly valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

Double-acting pneumatic rotary actuators PA-DAXXX and pneumatic rotary actuators with return spring PA-SA-XXX are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.

The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

The limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off body of the pipeline valves.

Air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain the pressure at the preset level, supply lubricant from the tank in the compressed air flow to the pneumatic system elements.





Technical parameters of Elephant WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000:

Name Significance
Working pressure, bar 16
Working medium temperature, °C from -20 to 120
Application water supply, heating
Connection to pipeline interflanged
Gate type swivel disk
Control type pneumatic actuator
Manufacturer's country China



Butterfly valves WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, BLSU APL-410N EX, ATU AFC2000





Dimensions and dimensions of butterfly valves Elephant WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000:

DN B, mm L, mm H, mm H2, mm E, mm B1, mm D, mm X, mm Y, mm
40 55 33 174 105 26 108 40 162 139
50 80 43 174 161 26 125 50 162 139
65 89 45 174 175 26 125 65 162 139
80 95 45 174 181 26 152 80 162 139
100 114 52 174 200 26 152 100 162 139
125 127 55 174 213 26 152 125 162 139
150 139 55 174 226 26 189 150 162 139
200 175 60 174 260 36 210 200 162 139
250 203 68 174 292 36 268 250 162 139
300 242 78 174 337 36 268 300 162 139

Sketch Butterfly valves WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000





Materials of butterfly valves Elephant WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000:

№ Name Material
1 Body Cast iron GGG50
2 Disk High-strength cast iron GGG40
3 Seat seal EPDM
4 Upper stem AISI 420 steel
5 Lower stem AISI 420 steel
6, 11 Retaining ring AISI 201 steel
7 Duster NBR
8 Stem gasket NBR
9 Shaft gasket AISI 201 steel
10 Plug plastic

Sketch of parts and materials Butterfly valves WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000



Technical data of PA-DA pneumatic actuators:

Design Double action
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium Filtered compressed air or non-aggressive gases, oils
Maximum particle diameter less than 30 µm2
Operating temperature t, ⁰C - 20 to +80 - 40 to +80 (low temperature version) - 20 to +160 (in dry air)
Adjustment range ± 5 ° for rotation at 0 ° and 90 °
Manual override is
Position indicator open/closed
Operating environment indoors and outdoors. (All internal and external parts are anti-corrosion coated)


PA-DA pneumatic actuator





PA-DA pneumatic actuator component materials:

№ Name Material
1 Enclosure extruded aluminum
2 Side plugs cast aluminum
3 Gear stainless steel
4 Piston steel/aluminum
5 Plugs stainless steel
6 Piston ring NBR
7 Springs spring steel
8 Piston bearing engineering plastic
9 Piston ring NBR
10 Plug NBR
11 Thrust ring engineering plastic
12 Ring engineering plastic
13 Washer stainless steel
14 Spring clip stainless steel
15 Indicator plastic
16 Indicator housing plastic
17 Bearing engineering plastic
18 Cam steel
19 Bearing NBR
20 Bearing engineering plastic
21 Bearing engineering plastic
22 Sealing ring NBR
23 Sealing ring NBR
24 Bearing stainless steel
25 Adjustment nut stainless steel
26 Adjustment screw stainless steel
27 Sleeve aluminum
Parts and material sketch of the PA-DA pneumatic actuator





Technical parameters of pneumatic valve 4V320-08 220V:

Name meaning
Type of pneumatic valve slide valve
Working pressure, bar 1.5 ÷ 1.8
Supply voltage, V 220 V
Total power, Va 4.5
Control double-sided electromagnetic
Frequency of operation, cycle/sec 5

Pneumatic valve 4V320-08 220V





Dimensions and dimensions of pneumatic valve 4V320-08 220V:

Pneumatic valve model 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4

Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V





Technical parameters of limit switch unit APL-410N EX:

Name Value
Model of limit switch unit APL-410N EX
Maximum voltage of limit switch, V 250
Working environment temperature, °C -40 to +80
Service life, years 10

Limit switch unit APL-410N EX



Dimensions and dimensions of limit switch unit APL-410N EX:

Model D, mm D1, mm H, mm L, mm B, mm M, mm
APL-410N EX 9.5 5 174 177 178 8

Sketch of dimensions and dimensions of limit switch unit APL-410N EX





Main parameters of the AFC2000 air treatment unit:

Operating pressure, bar 8
Maximum pressure, bar 10
Adjustable pressure range, bar 0,5 ÷ 9
Breaking pressure, bar 15
Air connection 1/4”
Operating temperature, C -5 to +60
Filter particle size, µm 40
Oil viscosity ISO VG 32
Weight, kg 0,395
Set composition filter-moisture separator, pressure regulator, lubricator, bracket

Air treatment unit AFC2000
